icon 2011-2016 ford f-250/f-350 super duty 4wd diesel, 2.5" lift, stage 3 suspension system w/ expansion packs k62583

OVERVIEW

ICON 2.5" suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.

Features and Benefits

• ICON engineered dual rate coil springs provide 2.5" of front lift over stock
• Match tuned piggyback reservoir 2.5 Aluminum Series front and rear shocks
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won't sag or break
• No drive shaft modifications required
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #151: FITS SINGLE REAR WHEEL MODELS ONLY
• TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
• TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
• TECH NOTE: Not compatible with F-350 Cab & Chassis models

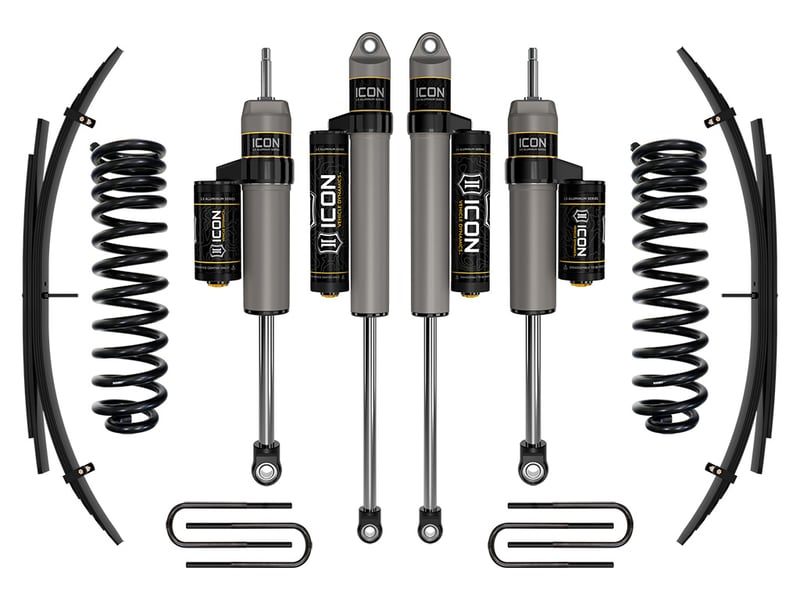

System Components

• 62510 (QTY: 1) | 05-19 FSD FRONT 2.5" DUAL RATE SPRING KIT
• 67700P (QTY: 1) | 05-24 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• 37705P (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB PAIR
• 168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
• 67004 (QTY: 1) | 11-24 FSD REAR 12" U-BOLT KIT
• 191201 (QTY: 1) | 1" CAST BLOCK KIT
• 61002 (QTY: 1) | 05-24 FSD 2" REAR BUMP STOP SPACER KIT
