icon 2014-2020 ford expedition 4wd .75-2.25" stage 2 suspension system w tubular uca k93302t

OVERVIEW

2014-2020 FORD EXPEDITION 4WD .75-2.25" LIFT STAGE 2 SUSPENSION SYSTEM WITH TUBULAR UCA

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed specifically for the 2014-2020 Expedition
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from .75-2.25" of lift height
• Tubular Upper Control Arms for added strength, durability, and alignment spec range
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no cutting, or welding necessary for install

Tech Info

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #124: REAR LIFT HEIGHTS OVER 1" INCREASE ADVANCETRAC SENSITIVITY

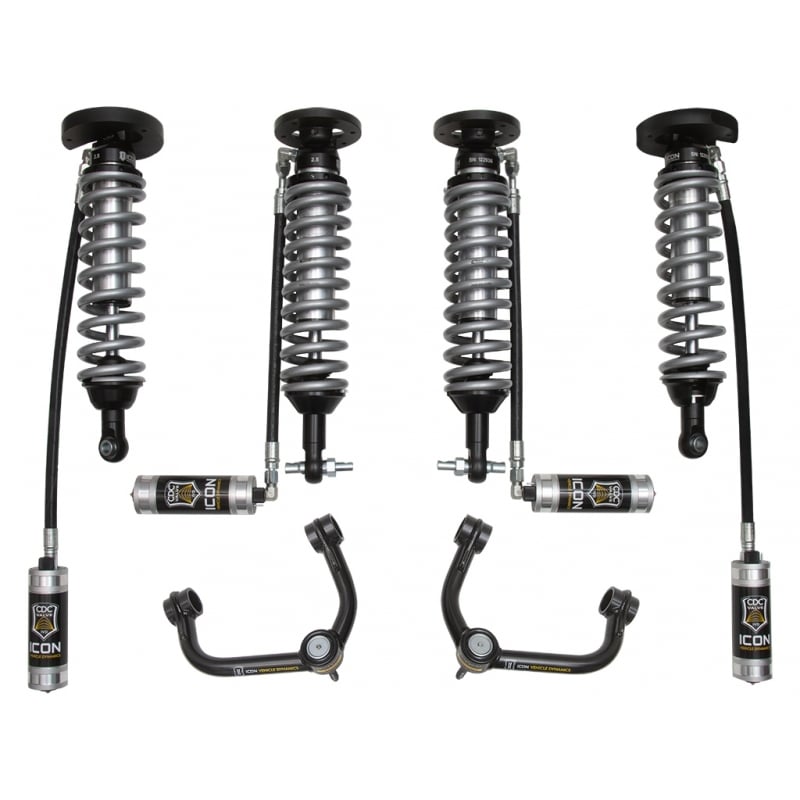

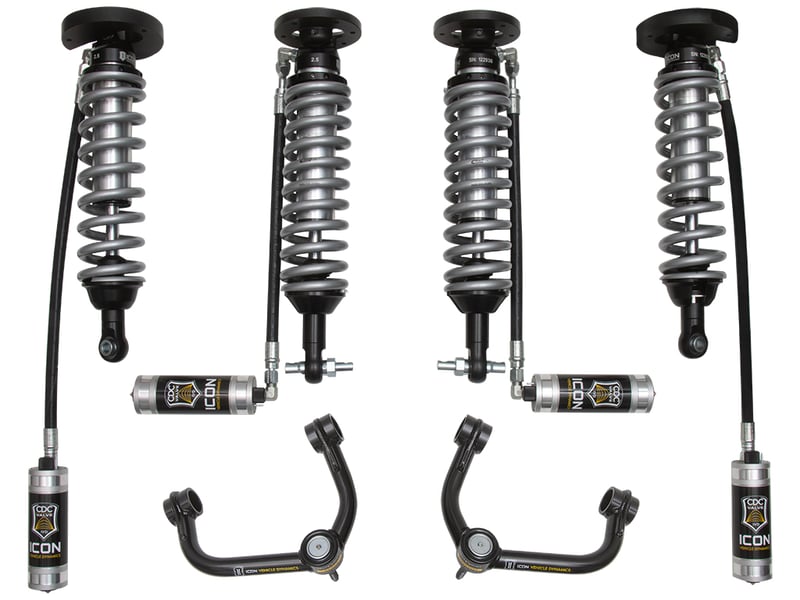

System Components

• 91820C (QTY: 1) | 14-20 EXPEDITION 4WD .75-2.25" FRT 2.5 VS RR CDCV COILOVER KIT
• 91821C (QTY: 1) | 14-20 EXPEDITION 4WD .75-2.25" REAR 2.5 VS RR CDCV COILOVER KIT
• 98500DJ (QTY: 1) | 04-20 F150 TUBULAR UCA DJ KIT
