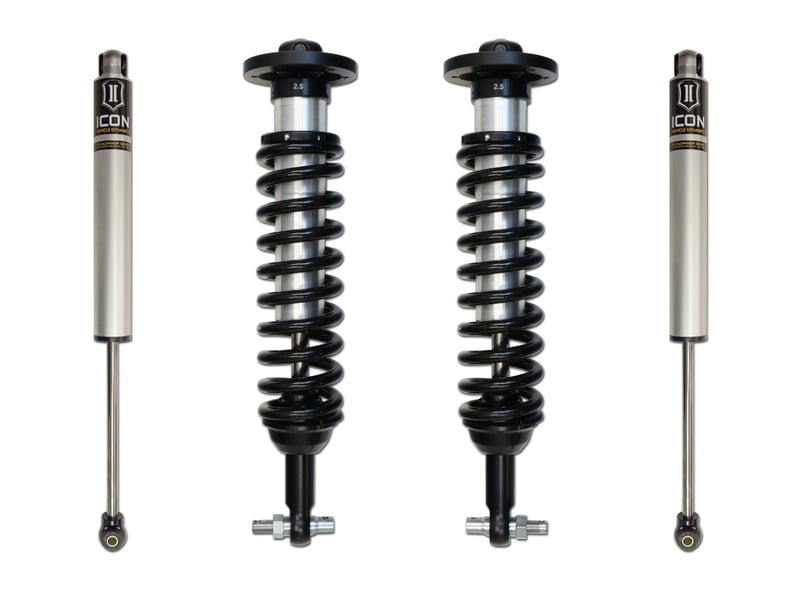

icon 2014 ford f150 4wd 0-2.63" stage 1 suspension system k93061

OVERVIEW

2014 FORD F150 4WD 0-2.63" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-2.63" of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 aluminum body IFP rear shock with 5/8" polished shaft
• 100% bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Lift heights above 2" over stock may require aftermarket front upper control arms to maintain proper alignment
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
• Ships in multiple boxes

System Components

• 91710 (QTY: 1) | 2014 F150 4WD 0-2.63" 2.5 VS IR COILOVER KIT
• 96518 (QTY: 2) | 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR
