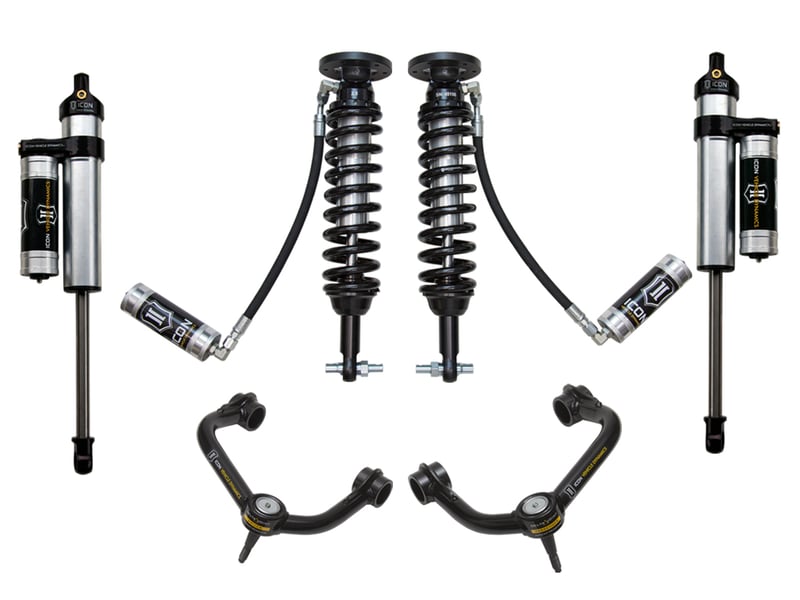

icon 2014 ford f150 4wd 1.75-2.63" stage 4 suspension system w tubular uca k93064t

OVERVIEW

2014 FORD F150 4WD 1.75-2.63" LIFT STAGE 4 SUSPENSION SYSTEM WITH TUBULAR UCA

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Adjustable coilovers provide 1.75-2.63" of lift height
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system - No cutting or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
• Ships in multiple boxes

System Components

• 91810 (QTY: 1) | 2014 F150 4WD 1.75-2.63" 2.5 VS RR COILOVER KIT
• 98500DJ (QTY: 1) | 04-20 F150 TUBULAR UCA DJ KIT
• 97720P (QTY: 1) | 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR
