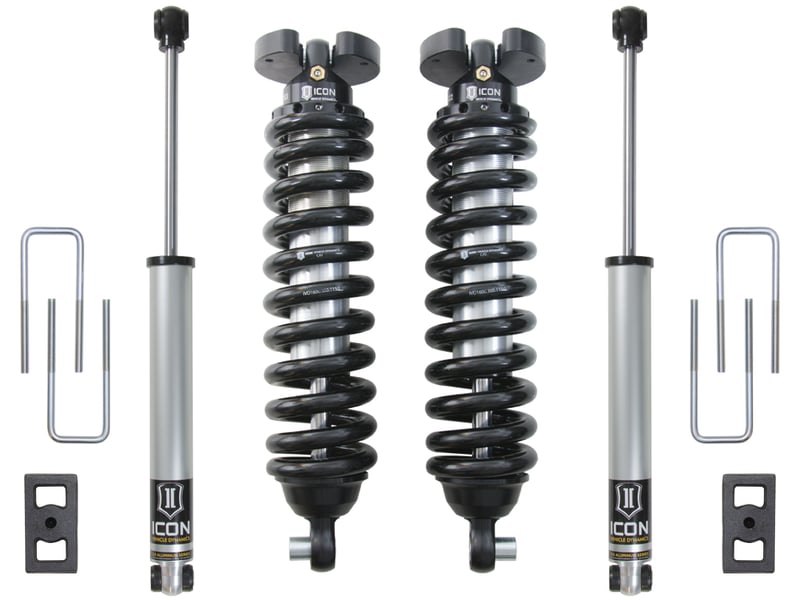

icon 2016-2023 nissan titan xd, 3" lift, stage 1 suspension system k83031

OVERVIEW

ICON 2.5-3" suspension systems lift your Nissan Titan XD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.

Features and Benefits

• Fits 2WD / 4WD applications
• Increased ride quality over stock with no change in towing capacity
• Approximately 32% increased front wheel travel over stock
• Adjustable coilovers provide 2.5-3" of lift height
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• FK Rod End bearings for extended longevity and minimal deflection
• 100% bolt-on system

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #115: LIFT HEIGHTS BASED ON 4WD CREW CAB DIESEL
• Ships in multiple boxes

System Components

• 81021 (QTY: 1) | 16-23 TITAN XD 2.5 IR COILOVER KIT
• 86535 (QTY: 2) | 16-23 TITAN XD 0-1.5" REAR 2.0 VS IR
• 88700 (QTY: 1) | 16-23 TITAN XD 9" U-BOLT KIT
• 191201 (QTY: 1) | 1" CAST BLOCK KIT
