icon 2017-2019 ford f250/f350, 4.5" lift, stage 2 suspension system k64512

OVERVIEW

2017-2019 FORD F-250/F-350 4.5" LIFT STAGE 2 SUSPENSION SYSTEM

Features and Benefits

• Fits 2017-2019 F-250 / F-350 4WD applications
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• FK Rod End bearings provide extended longevity and minimal deflection

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
• APPLICATION NOTE #31: '08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• Ships in multiple boxes

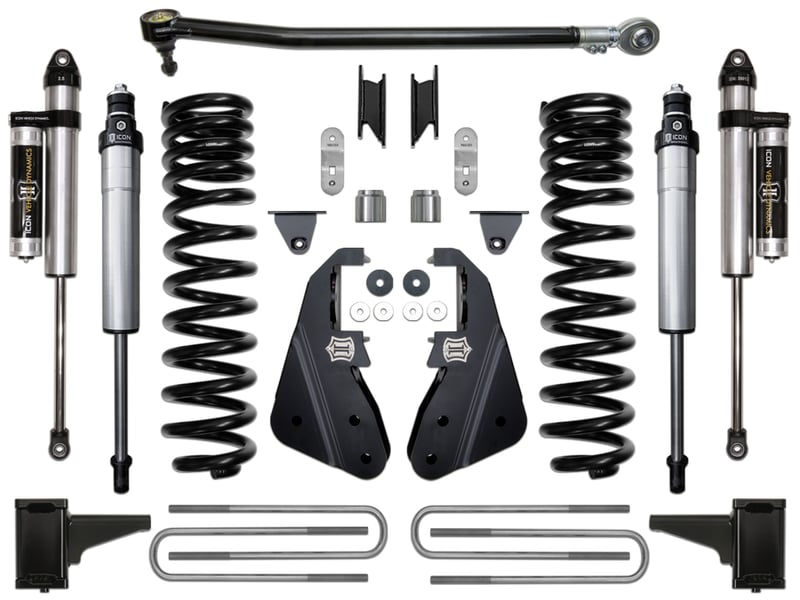

System Components

• 64050 (QTY: 1) | 08-22 FSD FRONT 4.5" BOX KIT
• 64010 (QTY: 1) | 05-19 FSD FRONT 4.5" DUAL RATE SPRING KIT
• 64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
• 64055 (QTY: 1) | 17-22 FSD RADIUS ARM DROP KIT
• 195275 (QTY: 1) | 99-24 FSD 5" BLOCK KIT
• 67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
• 67610P (QTY: 1) | 05-22 FSD 4WD 4.5" FRONT 2.5 VS IR PAIR
• 37705P (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB PAIR
