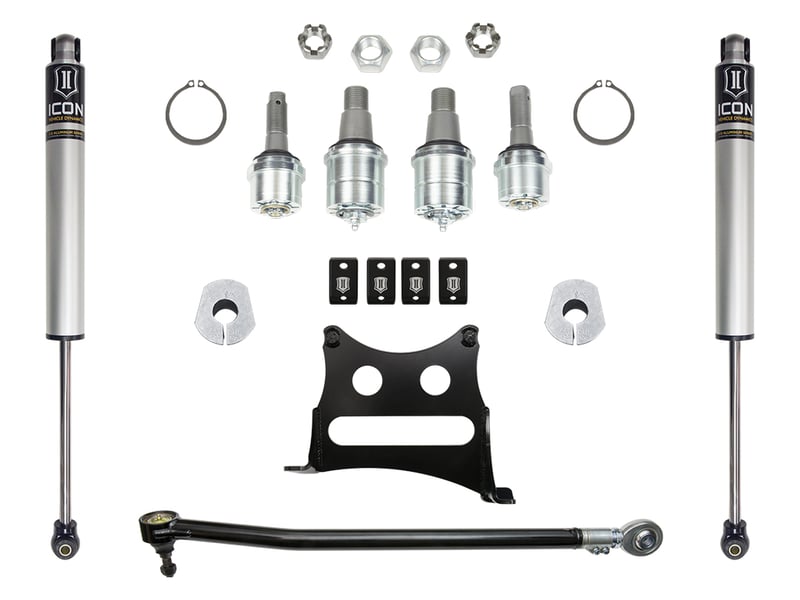

icon 2017-2022 ford f-250/f-350 super duty 4wd, ultimate front end kit, stage 4 k6204

OVERVIEW

The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.

Features and Benefits

• Full set of genuine Dynatrac front upper and lower ball joints
• Improves steering feel and vehicle control
• CNC machined, high-strength components
• Heat-treated, high-strength billet bodies with chromoly stems
• Heat-treated, precision-ground stainless-steel ball
• Sealed, greaseable design and PTFE coated wear points ensure long service life
• On-vehicle rebuildable design
• Adjustable track bar helps to free up bind during front suspension travel and articulation
• Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
• On-vehicle adjustable track bar for precise track alignment using ICON's double adjuster
• Greaseable and replaceable OE style track bar ball joint
• CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
• Dual opposing stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
• Dual 2.0 Aluminum Series shocks offer increased steering damping over stock unit
• Provides symmetrical steering feel throughout input range
• CNC laser cut steel stabilizer bracket
• 6061 billet aluminum tie rod clamps, anodized for corrosion resistance
• Alignment cams add 2.3° of caster and .5° of camber over stock
• Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
• Zinc plated cams for corrosion resistance
• Includes new ball joint cotter pins

Tech Info

• TECH NOTE: Fits 2017-2022 Ford F-250/F-350 4WD
• TECH NOTE: Requires minimum of 2" bump stop spacer. ICON Part # 64037
• TECH NOTE: Alignment cams are optimized for vehicles with 2-3" of front lift. Not recommended for stock height vehicles.
• TECH NOTE: Will not fit axles equipped with RCV axle shafts
• TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry

System Components

• 65000 (QTY: 1) | 05-22 FSD DUAL STABILIZER KIT
• 36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
• 62530 (QTY: 1) | 05-23 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
• 64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
• DA60-2X3050-A (QTY: 1) | #N/A
