icon 2017-2022 ford f250/f350, 2.5-3" lift, stage 4 coilover conversion system k63144

OVERVIEW

2017-2022 FORD F-250/F-350 2.5-3" LIFT STAGE 4 COILOVER CONVERSION SYSTEM

Features and Benefits

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Corrosion resistant anodized aluminum rear shock bodies with 7/8" shafts
• Eibach springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
• APPLICATION NOTE #120: SECONDARY SHOCK OPTIONS AVAILABLE, CONTACT ICON FOR MORE DETAILS
• TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
• TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
• TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
• TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
• Ships in multiple boxes

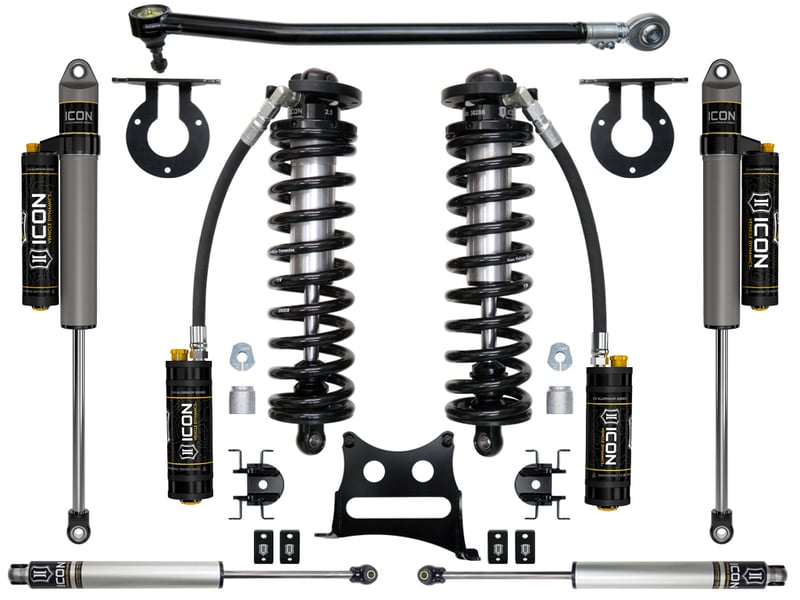

System Components

• 61720C (QTY: 1) | 05-23 F250/F350 4WD 2.5-3" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT W/ CAMS
• 64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
• 65000 (QTY: 1) | 05-22 FSD DUAL STABILIZER KIT
• 36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
• 37705CP (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
