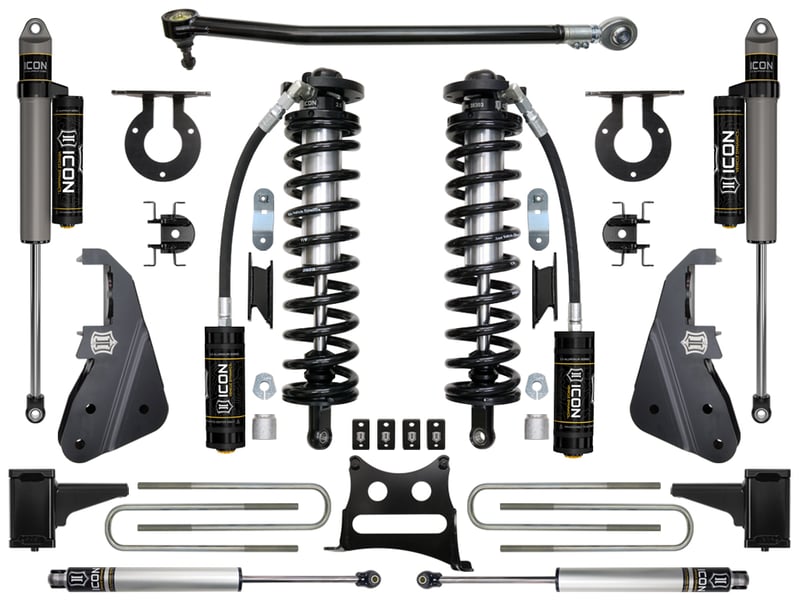

icon 2017-2022 ford f250/f350, 4-5.5" lift, stage 3 suspension system k63153

OVERVIEW

2017-2022 FORD F-250/F-350 4-5.5" LIFT STAGE 3 COILOVER CONVERSION SYSTEM

Features and Benefits

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
• APPLICATION NOTE #120: SECONDARY SHOCK OPTIONS AVAILABLE, CONTACT ICON FOR MORE DETAILS
• TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
• TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
• TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
• TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
• Ships in multiple boxes

System Components

• 64050 (QTY: 1) | 08-22 FSD FRONT 4.5" BOX KIT
• 61721 (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
• 64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
• 64055 (QTY: 1) | 17-22 FSD RADIUS ARM DROP KIT
• 65000 (QTY: 1) | 05-22 FSD DUAL STABILIZER KIT
• 36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
• 195275 (QTY: 1) | 99-24 FSD 5" BLOCK KIT
• 67002 (QTY: 1) | 11-24 FSD REAR 17" U-BOLT KIT
• 37701P (QTY: 1) | 99-24 FSD 3-6" REAR 2.5 VS PB PAIR
