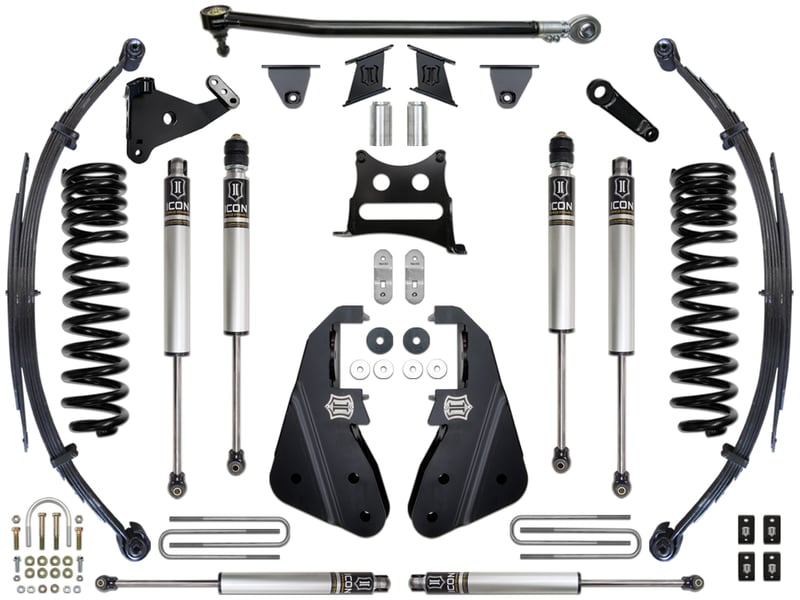

icon 2017-2022 ford f250/f350, 7" lift, stage 1 suspension system k67111

OVERVIEW

2017-2022 FORD F-250/F-350 7" LIFT STAGE 1 SUSPENSION SYSTEM

Features and Benefits

• Fits 2017-2022 F-250 / F-350 4WD applications
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Progressive leaf springs improve ride quality without reducing towing capacity
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
• APPLICATION NOTE #31: '08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #57: FACTORY BLOCK MUST BE USED IN CONJUNCTION WITH ICON LEAF SPRINGS FOR TRUCK TO SIT LEVEL
• APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT
• TECH NOTE: 2017-2019 Super Duty models will have front lift height of 7" over stock.
• TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level.
• TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level.
• TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• Ships in multiple boxes

System Components

• 67015 (QTY: 1) | 05-24 FSD FRONT 7" DUAL RATE SPRING KIT
• 67035 (QTY: 1) | 17-22 FSD FRONT 7" BOX KIT
• 62530 (QTY: 1) | 05-23 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
• 64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
• 64055 (QTY: 1) | 17-22 FSD RADIUS ARM DROP KIT
• 168506 (QTY: 2) | 17-24 FSD 5" REAR LEAF SPRING PACK
• 65505H (QTY: 1) | 17-24 5" LEAF SPRING HARDWARE KIT
• 65501 (QTY: 1) | 11-24 FSD U-BOLT PLATE KIT
• 67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
• 67031 (QTY: 1) | 11-22 FSD REAR 7" BRAKE BRACKET KIT
• 66514 (QTY: 2) | 05-24 FSD 4WD 7" FRONT 2.0 VS IR
• 66517 (QTY: 2) | 17-24 FSD REAR 2-5" 2.0 VS IR
• 65000 (QTY: 1) | 05-22 FSD DUAL STABILIZER KIT
• 36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
