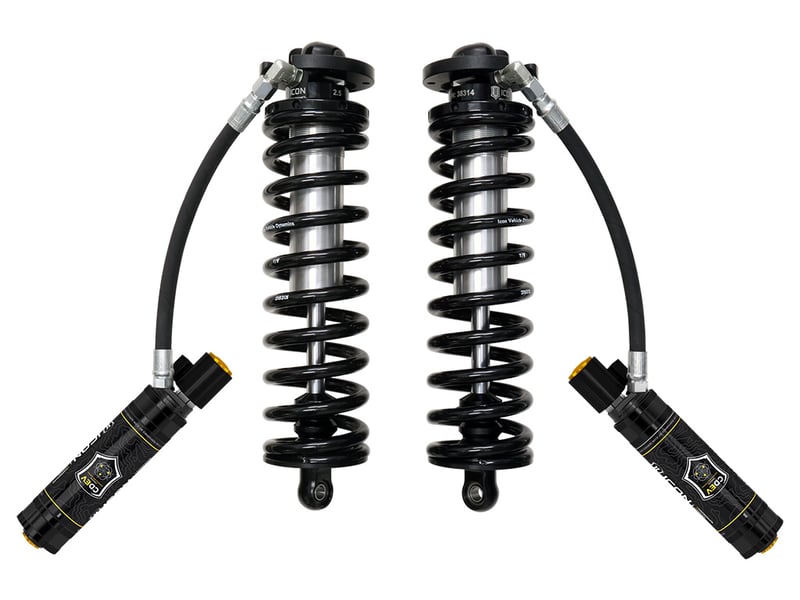

icon 2017-2024 ford f-250/f-350 super duty 4wd, 4-5.5" lift, front, 2.5 v.s. remote reservoir cdev coilover conversion kit 61721e

OVERVIEW

ICON's 2.5 Series Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to Ford Super Duty trucks. They have been designed to increase the overall damping ability while also allowing ride height adjustment.

Features and Benefits

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers

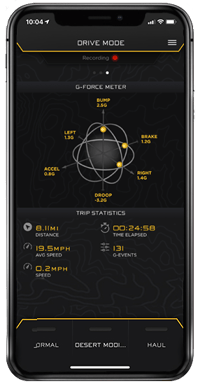

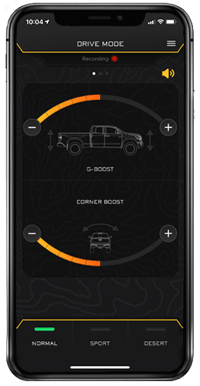

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Coilover conversion allows for addition of optional secondary shocks
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Tech Info

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Tires (2005-2016 models): 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
• Recommended Aftermarket Tires (2017-2024 models): 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• TECH NOTE: Only compatible with 4WD models
• TECH NOTE: Not compatible with F-450 or F-550
• TECH NOTE: Removal of the coil centering cup in factory coil bucket required for installation
• TECH NOTE: 2017-2022 models also requires installation of IIC part number 93500 and CDEV rear shock part number 37701EP
• TECH NOTE: 2023-2024 models also requires installation of IIC part number 93502 and CDEV rear shock part number 37705EP

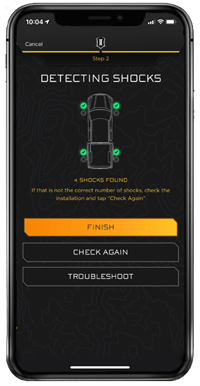

• TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
• TECH NOTE: If installing with ICON 2.5 Aluminum Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
• TECH NOTE: If installing with ICON 2.5 Aluminum Series CDEV remote reservoir secondary shocks part number 191207 is also required
• TECH NOTE: 2005-2019 Super Duty diesel models will have front lift height range of 4-5.5" over stock
• TECH NOTE: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 4.75-6.25" over stock
• TECH NOTE: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
• TECH NOTE: 2023-2024 Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
• TECH NOTE: 2023-2024 Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
• TECH NOTE: 2023-2024 Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
• TECH NOTE: 2023-2024 Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
