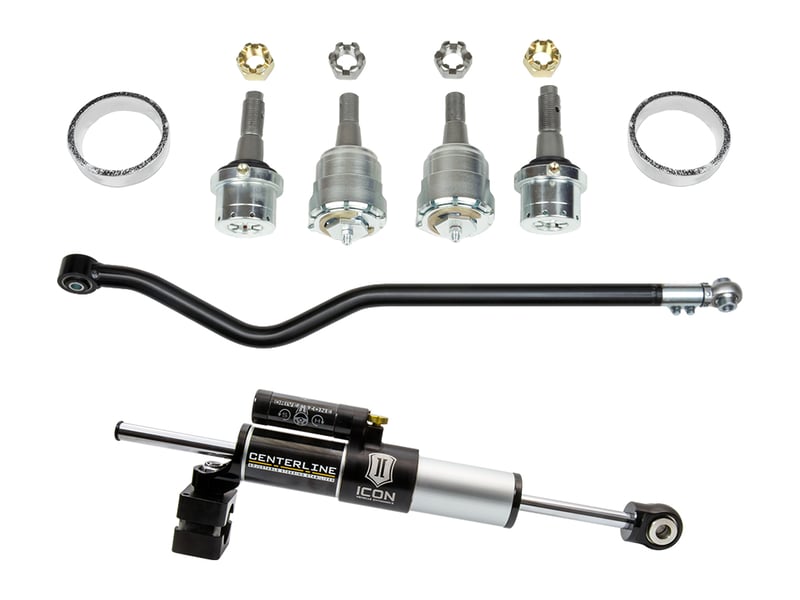

icon 2018-2023 jeep wrangler jl/2020-2023 jeep gladiator, ultimate front end kit, stage 4 k2214

OVERVIEW

The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.

Features and Benefits

• Improves steering feel and vehicle control
• Through shaft steering stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
• Increased steering damping over stock unit
• Provides symmetrical steering feel throughout input range
• Adjustable "Drive Zone" with 9 clicks of steering damping adjustment
• Centerline steering stabilizer is a fully serviceable ICON 2.0 Aluminum Series piggyback reservoir shock
• 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
• 5/8" chrome plated hardened steel shock shafts
• 5WT shock oil for consistent suspension damping along a wide temperature range
• FK Rod End bearings in steering stabilizer for precise function
• On vehicle adjustable track bar for precise track alignment using ICON's Double Adjuster
• Maintenance free, multi-durometer bushing and JM12T rod end minimize track bar deflection while maximizing responsiveness
• Track bar constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing
• Full set of genuine Dynatrac front upper and lower ball joints
• CNC machined, high-strength ball joint components
• Heat-treated, high-strength billet ball joint bodies with chromoly stems
• Heat-treated, precision-ground stainless-steel ball
• Sealed, greaseable ball joint design with PTFE coated wear points ensure long service life
• Snap ring prevents unwanted ball joint movement in axle housing
• On-vehicle rebuildable ball joint design

Tech Info

• TECH NOTE: Fits 2018-2023 Jeep Wrangler JL and 2020-2023 Jeep Gladiator equipped with OE or Dynatrac ProRock 44 front axles
• TECH NOTE: If using a heavy duty 1-5/8" aftermarket tie rod, oversized clamp kit (PN: 614525) must be used
• TECH NOTE: Requires a minimum of 1" tall bump stop spacer (ICON part number 22044 recomended) unless suspension system already includes 1" or taller front bump stop spacers
• TECH NOTE: Not compatible with Unlimited Rubicon 392. See ICON Help Center for more information.

System Components

• 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
• 22043 (QTY: 1) | 18-23 JL/20-23 JT 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE
• JP44-2X3050-E (QTY: 1) | #N/A
