icon 2019-2023 ram 1500, 2-3" lift, stage 4 suspension system, tubular uca k213114t

OVERVIEW

ICON 2019-2023 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, translating to outstanding control and ride quality.

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable remote reservoir coilovers yield 2-3" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and performance
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
• 2.5 Aluminum Series rear piggyback reservoir shocks with 7/8" polished shafts
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing
• APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
• APPLICATION NOTE #105: Not for vehicles with rear factory air ride
• APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
• APPLICATION NOTE #184: Will not fit Ram 1500 TRX
• TECH NOTE: 2019-2023 Ram 1500 Rebel will have front lift height range of 1.25-2.25" over stock and 1" of rear lift over stock

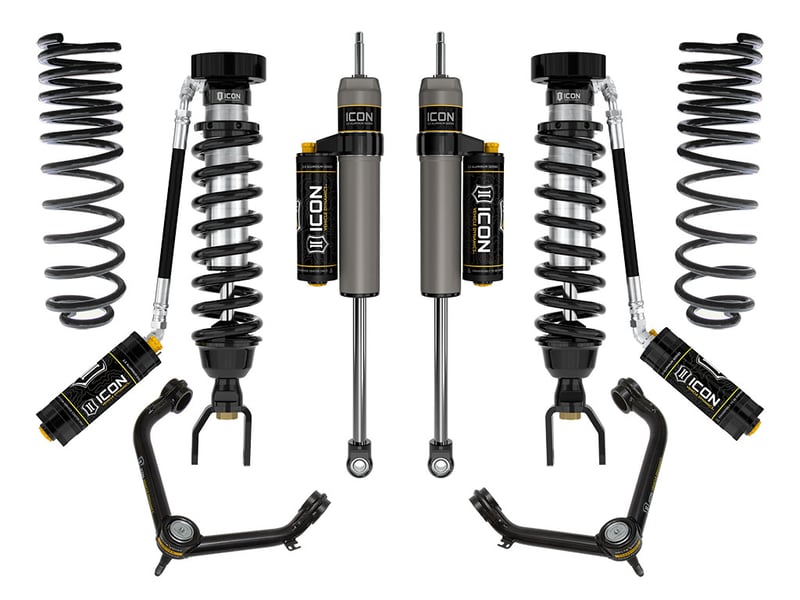

System Components

• 211015C (QTY: 1) | 19-23 RAM 1500 2-3" 2.5 VS CDCV COILOVER KIT
• 218550DJ (QTY: 1) | 09-23 RAM 1500 TUBULAR UCA DJ KIT
• 212150 (QTY: 1) | 09-23 RAM 1500 REAR 1.5" DUAL RATE SPRING KIT
• 217716CP (QTY: 1) | 19-23 RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR
