icon 2021-2023 ford bronco, hoss 2.0 pkg, 0-2" lift, stage 1 suspension system k40011

OVERVIEW

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.

Features and Benefits

• Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package
• Vehicle specific tuned shocks for superior shock damping and vehicle control
• Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
• Adjustable ride heights from 0-2" of front lift and 0-1.75" of rear lift over stock with the use of snap rings
• Utilizes factory coils and coil hardware
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shafts
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
• Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packagesrequire coilover bump stop spacers along with trimming and modifications)
• Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tire packages require coilover bump stop spacers and may also require fender trimming and modifications)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #66: 2 DOOR MODELS WILL SIT TALLER THAN 4 DOOR MODELS.
• APPLICATION NOTE #138: RECOMMEND HIGH CLEARANCE CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
• APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED
• APPLICATION NOTE #147: WHEN RUNNING 37" TIRES USE BUMP STOP SPACER KIT PART #611082 IN THE FRONT
• TECH NOTE: Only compatible with Ford Broncos equipped with HOSS 2.0 Suspension Package
• TECH NOTE: Lift heights above 1.5" over stock may require aftermarket front upper control arms to maintain ideal front end alignment
• TECH NOTE: Not compatible with Bronco Raptor

System Components

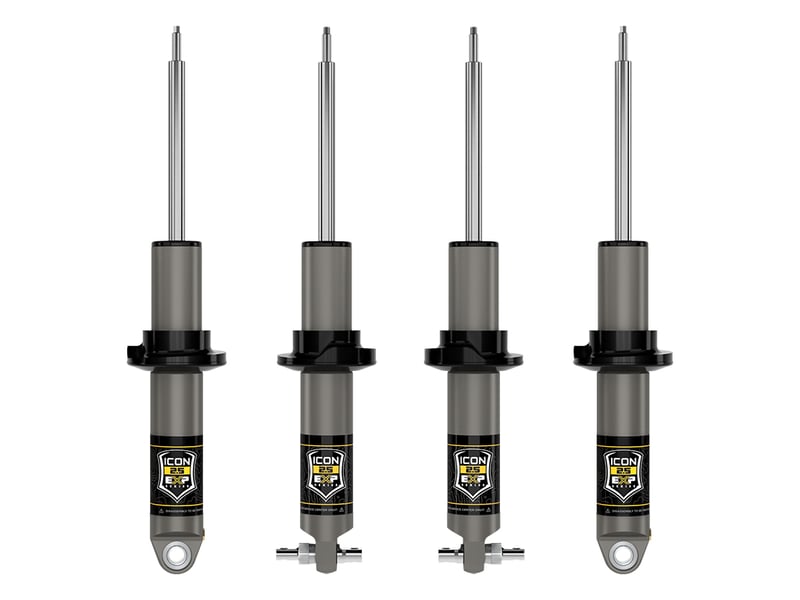

• 48602 (QTY: 2) | 21-23 BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER
• 48612 (QTY: 2) | 21-23 BRONCO HOSS 2.0 PKG 2.5 REAR EXP COILOVER
