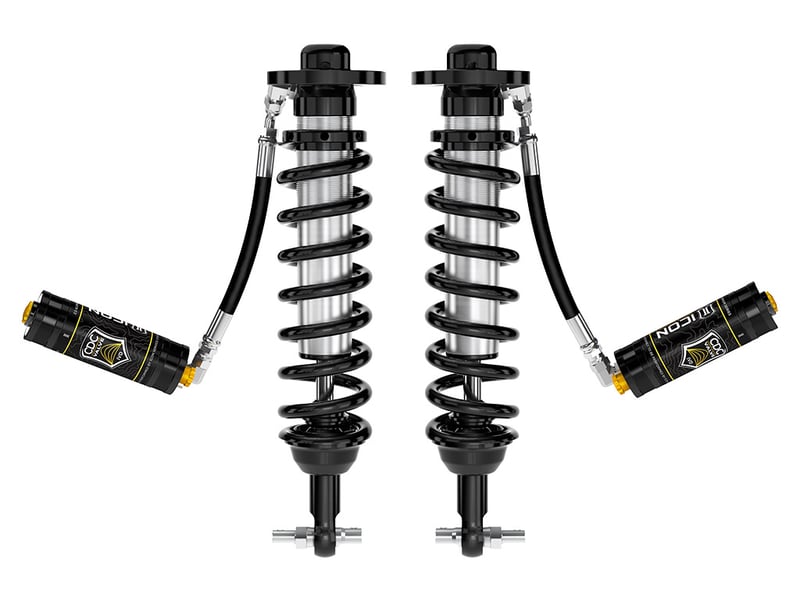

icon 2021-2024 ford f-150 4wd, 0-2.75" lift, front, v.s. 2.5 series coilovers, remote reservoir w/ cdcv, pair 91823c

OVERVIEW

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's 2.5" body and increased piston area improves damping and remote reservoirs with CDCV allow for compression damping adjustment.

Features and Benefits

• Increased wheel travel and ride quality over stock
• ICON engineered Eibach Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• External reservoirs to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for external tuneability of your shocks
• Adjustable 0-2.75" lift height

Tech Info

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
• APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
• TECH NOTE: Not compatible with models equipped with BlueCruise
