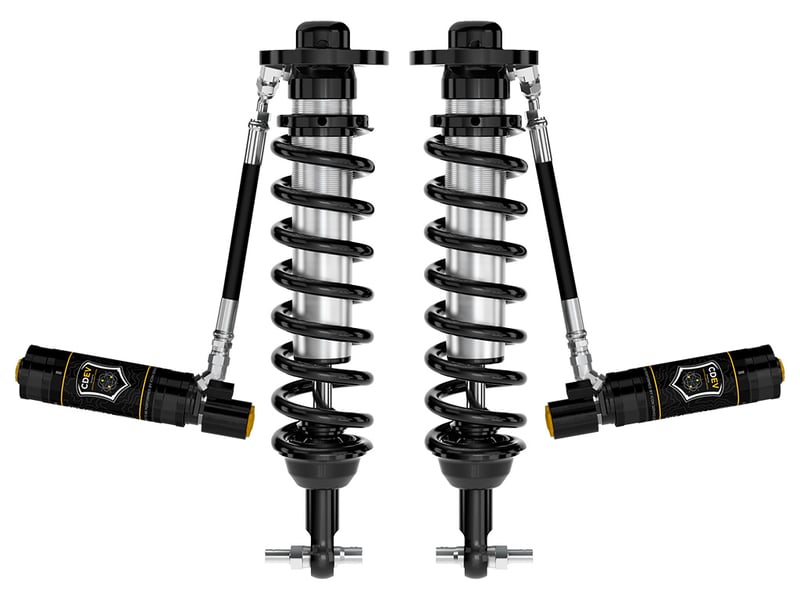

icon 2021-2024 ford f-150 4wd, 0-2.75" lift, front, v.s. 2.5 series coilovers, remote reservoir w/ cdev, pair 91823e

OVERVIEW

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's 2.5" body and increased piston area improves damping and remote reservoirs with CDEV allow for compression damping adjustment.

Features and Benefits

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length yields maximum wheel travel
• Height-adjustable coilovers offer 0-2.75" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pins
• Fully rebuildable and re-tunable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
• APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
• TECH NOTE: Not compatible with models equipped with BlueCruise
• TECH NOTE: Also requires installation of IIC kit (Part # 93500) and CDEV rear shocks (Part # 97720EP)
• TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
