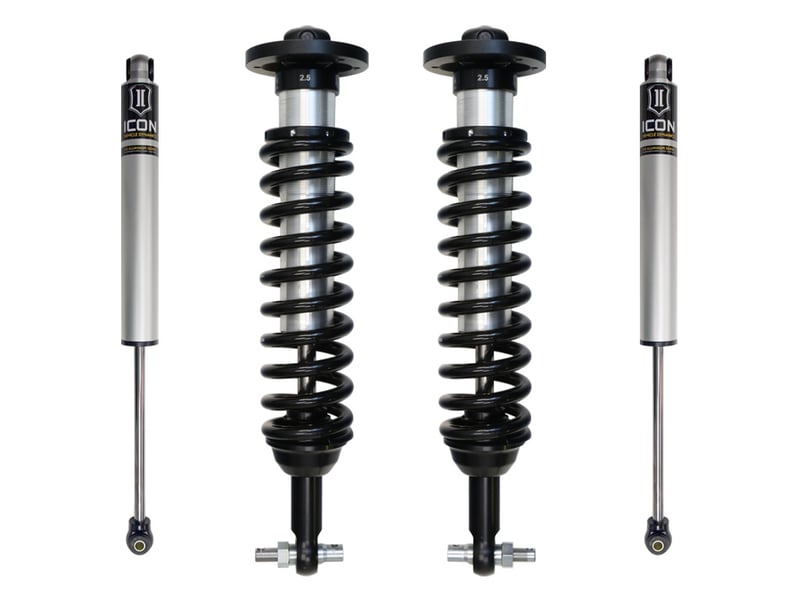

icon 2021-2024 ford f-150 4wd, 0-2.75" lift, stage 1 suspension system k93111

OVERVIEW

Stage 1 includes 2.5" coilovers with internal reservoirs with height adjustability from 0-2.75" of lift. ICON 2.0 Aluminum Series monotube rear shocks balance the performance of the truck from front to rear.

Features and Benefits

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.0 aluminum body rear IFP shock with 5/8" polished shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Unique valving developed for 2021-2024 F-150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 0-2.75" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #129: will not work with factory installed electronically controlled suspension.
• APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
• TECH NOTE: Not compatible with models equipped with BlueCruise
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models

System Components

• 91722 (QTY: 1) | 21-24 F150 4WD 0-2.75" 2.5 VS IR COILOVER KIT
• 96518 (QTY: 2) | 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR
