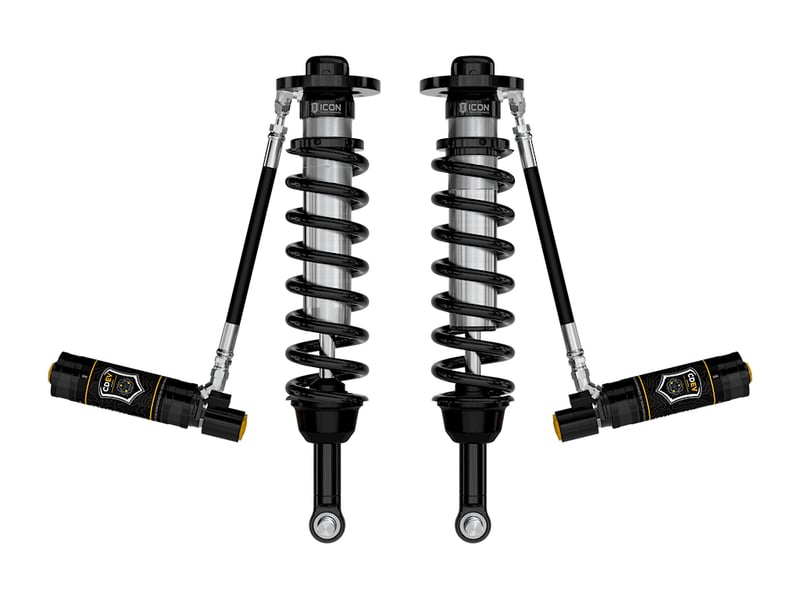

icon 2021-2024 ford f-150 4wd, 2.75-3.5" lift, front, v.s. 2.5 series coilovers, remote reservoir w/ cdev, pair 91825e

OVERVIEW

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Features and Benefits

• Increased wheel travel and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 2.75-3.5" of lift height over stock
• Remote reservoir to attain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON engineered coil Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation

Tech Info

• Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Also requires installation of IIC kit (Part # 93500) and CDEV rear shocks (Part # 97720EP)
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3" over stock
• TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
• TECH NOTE: Not compatible with models equipped with BlueCruise
