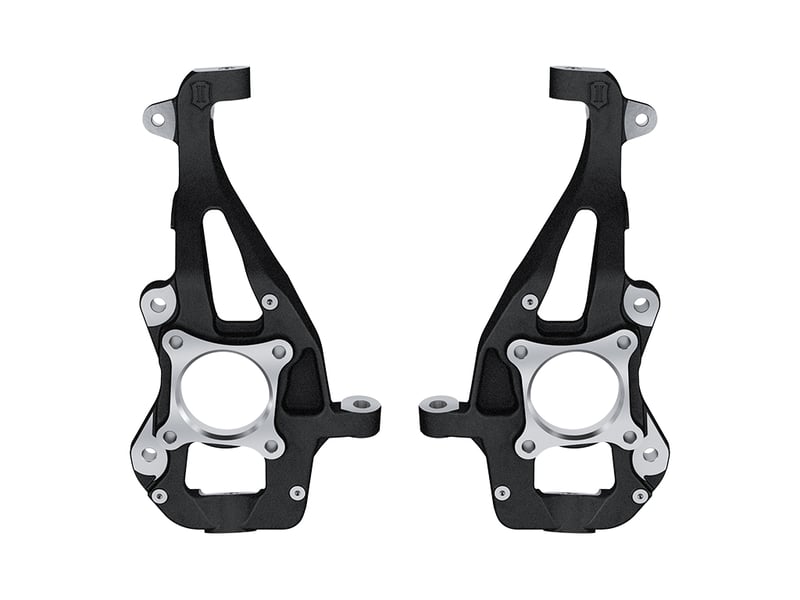

icon 2021-2024 ford f-150 4wd, front, steering knuckle kit 94000

OVERVIEW

The steering knuckle's design replicates the suspension geometry of the F-150 Tremor and when paired with ICON Tremor coilover kits they offer a 20% increase in front wheel travel, 3.5-4.5" of lift, as well as improved ball joint angles.

Features and Benefits

• Single piece high-strength ductile iron steering knuckles
• Replicates F-150 Tremor suspension geometry for increased wheel travel, taller ride height, and improved ball joint angles
• Maintains factory track width
• Engineered to withstand the stresses of aggressive off-road use
• Precision CNC machined
• Pocketed design to minimize un-sprung weight
• Durable powder coat finish for corrosion resistance
• ICON Limited Lifetime Warranty

Tech Info

• Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
• TECH NOTE: Only compatible with F-150 4-wheel drive (4WD) models
• TECH NOTE: Requires ICON front coilvover kit part numbers 91723, 91824, 91824C, 91824X, or 91824E
• TECH NOTE: Not compatible with F-150 Raptor
• TECH NOTE: Not compatible with models equipped with BlueCruise
