icon 2021-2024 ford f-150 raptor, 2-2.25" lift, stage 1 suspension system k93171

OVERVIEW

Transform your Gen3 F-150 Raptor's stance with the ICON Vehicle Dynamics Stage 1 suspension system. Designed for seamless compatibility, maintaining electronic shock functionality while enhancing your truck's capability and ride quality.

Features and Benefits

• Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
• Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
• Compatible with all versions of available OE shock absorbers
• Maintains electronic shock functionality
• Linear rate front coil springs
• 1" rear lift height over stock on Raptors without additional weight in the rear
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
• Tapered wire rear coil design achieves maximum travel and efficiency
• Significantly improves on- and off-road ride quality and performance over stock
• Bolt-on installation with no cutting required
• Dual stage powder coating for maximum corrosion resistance
• Lifetime guarantee against sagging/breakage

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Tires (w/o 37 Package): 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Tires (w/ 37 Package): 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
• APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers.
• TECH NOTE: Provides 2.25" of front lift over stock on F-150 Raptor
• TECH NOTE: Provides 2" of front lift over stock on F-150 Raptor R

System Components

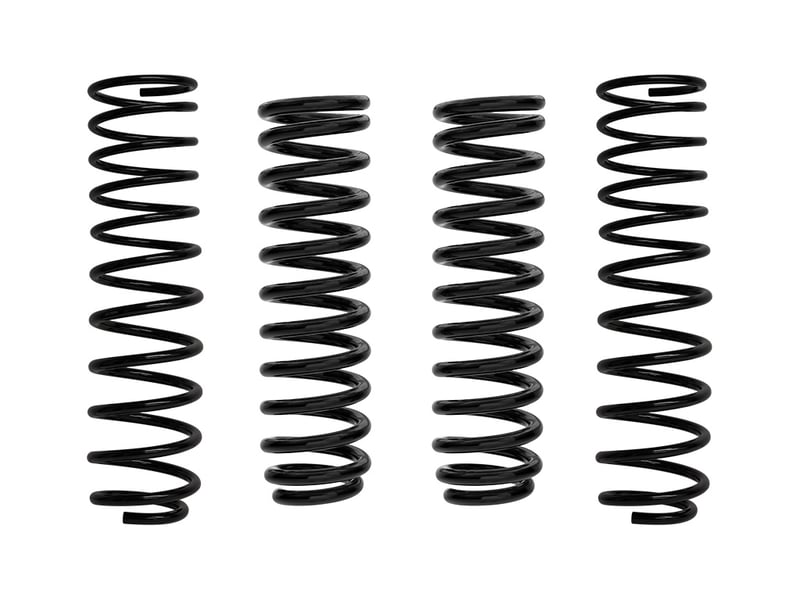

• 95232 (QTY: 1) | 21-24 F-150 RAPTOR FRONT SPRING KIT
• 95230 (QTY: 1) | 21-24 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
