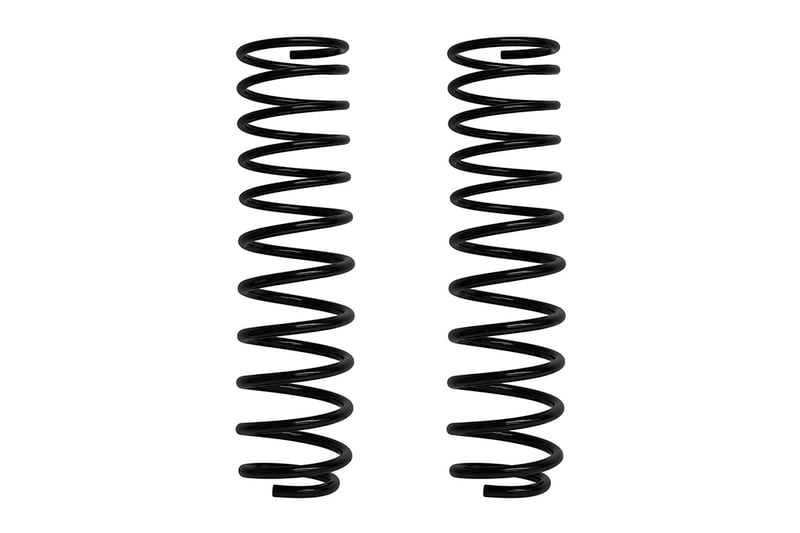

icon 2021-2024 ford f-150 raptor, rear, 1" lift, overland triple rate coil spring kit 95231

OVERVIEW

The ICON triple-rate coil springs provide softer ride and droop rates with firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.

Features and Benefits

• Vehicle specific design for the Gen3 F-150 Raptor
• 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
• Tapered wire design achieves maximum travel and efficiency
• Tall free height - will not come loose from coil buckets for up to 17" of droop
• Significantly improves on- and off-road ride quality and performance over stock
• Dual stage powder coating for maximum corrosion resistance
• Lifetime guarantee against sagging/breakage

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
• APPLICATION NOTE #181: Advertised lift height ranges are for a vehicle with approx 300lbs of additional weight in rear. increasing or decreasing weight of vehicle due to accessories will alter lift range.
