icon 2021-2024 ford f-150 tremor, 2.5-3" lift, stage 1 suspension system, billet k93161

OVERVIEW

ICON suspension systems lift your Ford F-150 Tremor while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.

Features and Benefits

• Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.0 aluminum body rear IFP shocks with 5/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #130: Equipped With Dynamic Bending Headlamps Purchase Part# 611071
• APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
• TECH NOTE: Only compatible with 2021-2024 Ford F-150 Tremor
• TECH NOTE: Only compatible with OE knuckles. DO NOT install in combination with ANY aftermarket knuckles.
• TECH NOTE: Not compatible with models equipped with BlueCruise
• TECH NOTE: Not compatible with models equipped with OnBoard Scales
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock

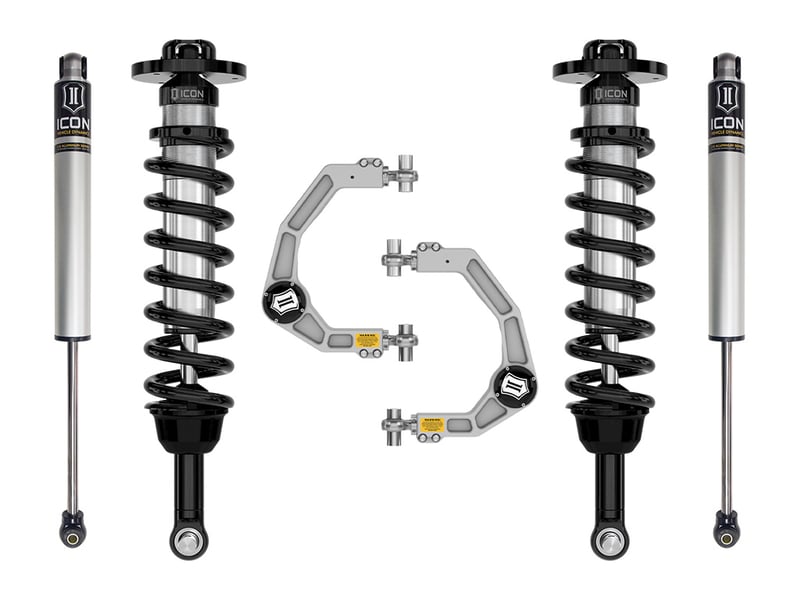

System Components

• 96518 (QTY: 2) | 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR
• 91723 (QTY: 1) | 21-24 F150 TREMOR 2.5-3" 2.5 VS IR COILOVER KIT
• 98523DJ (QTY: 1) | 21-24 F150 BILLET UCA DJ PRO KIT
