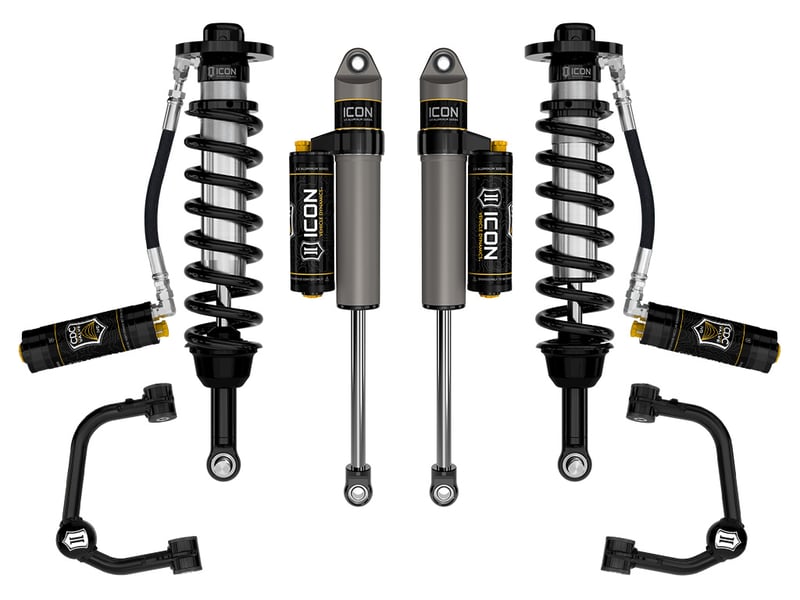

icon 2021-2024 ford f-150 tremor, 2.5-3" lift, stage 4 suspension system, tubular, cdcv k93164t

OVERVIEW

ICON suspension systems lift your Ford F-150 Tremor while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.

Features and Benefits

• Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• Tubular Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range
• 20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on system - no cutting or welding necessary for install

Tech Info

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
• TECH NOTE: Only compatible with 2021-2024 Ford F-150 Tremor
• TECH NOTE: Only compatible with OE knuckles. DO NOT install in combination with ANY aftermarket knuckles.
• TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock

System Components

• 91824C (QTY: 1) | 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDCV COILOVER KIT
• 98522DJ (QTY: 1) | 21-24 F150 TUBULAR UCA DJ PRO KIT
• 97721CP (QTY: 1) | 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDCV PAIR
