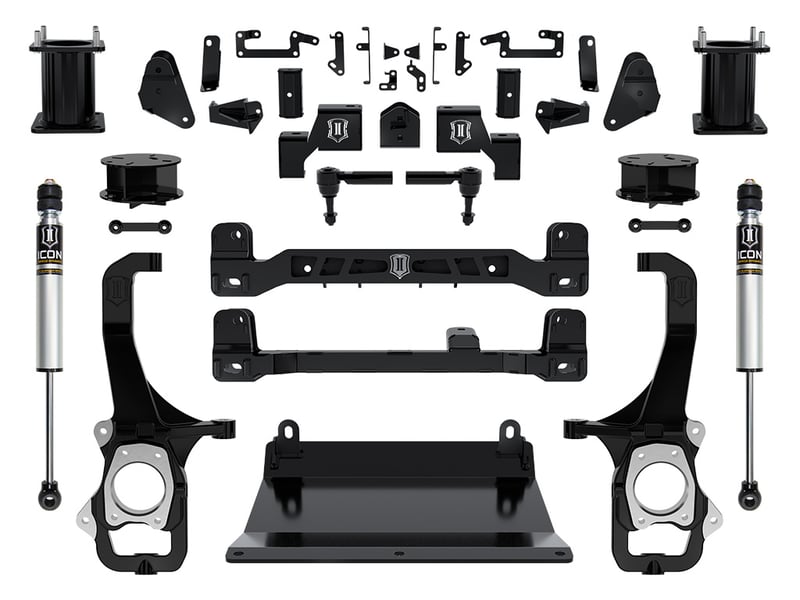

icon 2022-2024 toyota tundra, 6" lift, stage 1 suspension system k53271

Features and Benefits

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Front coilover spacer kit with heavy duty steel construction
• Provides 6" front suspension lift with only 4" of crossmember drop
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks to improve rear suspension performance
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Tech Info

• OEM Wheels & Tires Fitment: No
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #144: Not Compatible With Trd Pro
• APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
• APPLICATION NOTE #154: Not Compatible With Tundra Sr5 Equipped With Trd Sport Package
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• TECH NOTE: Requires minimum of 20" diameter wheels

System Components

• 51010 (QTY: 1) | 22-24 TUNDRA FRONT BOX KIT 1
• 51011 (QTY: 1) | 22-24 TUNDRA FRONT BOX KIT 2
• 51012 (QTY: 1) | 22-24 TUNDRA REAR BOX KIT
• 51014 (QTY: 1) | 22-24 TUNDRA FRONT SKID PLATE
• 51015 (QTY: 1) | 22-24 TUNDRA 6" COILOVER SPACER KIT
• 51016 (QTY: 1) | 22-24 TUNDRA REAR COIL SPACER KIT
• 51017 (QTY: 1) | 22-24 TUNDRA FRONT SKID PLATE
• 56517 (QTY: 2) | 22-24 TUNDRA 3.5" REAR 2.0 VS IR
