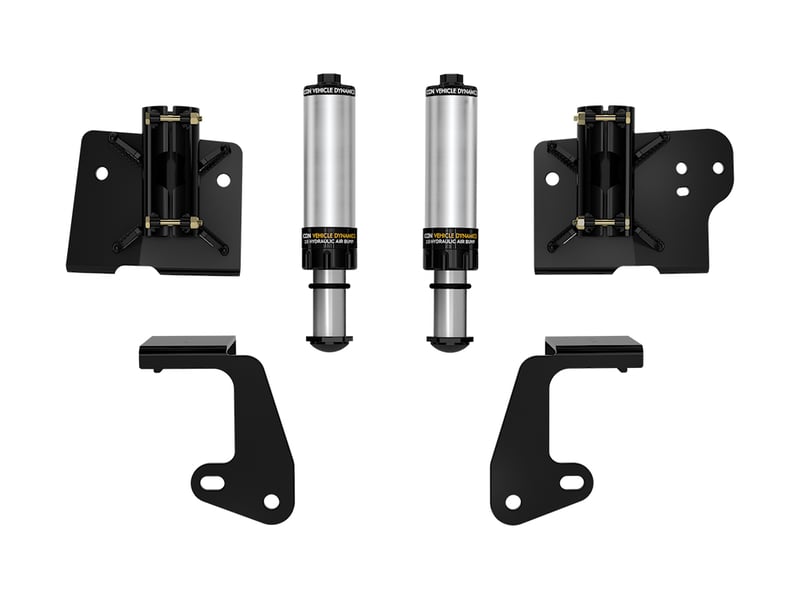

icon 2022-2024 toyota tundra, rear hydraulic bump stop kit, 3-5" lift 56115

OVERVIEW

The ICON 2022-2024 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.

Features and Benefits

• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully reversible to factory configuration with no bed cutting required
• 2.5" travel bump stop reduces rear end 'kick' and improves overall performance
• Position and velocity sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Heavy duty 1 ¼" CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad
• Fully serviceable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• TECH NOTE: Compatible with 3-5" of rear lift on models equipped with rear coil springs without TRD package.
• TECH NOTE: Compatible with 3-4.5" of rear lift on models equipped with rear coil springs with TRD package, or TRD Pro.
• APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• TECH NOTE: Compatible with ICON 6" Lift Performance Suspension System. For shorter lift height compatibility, use part number 56111.
