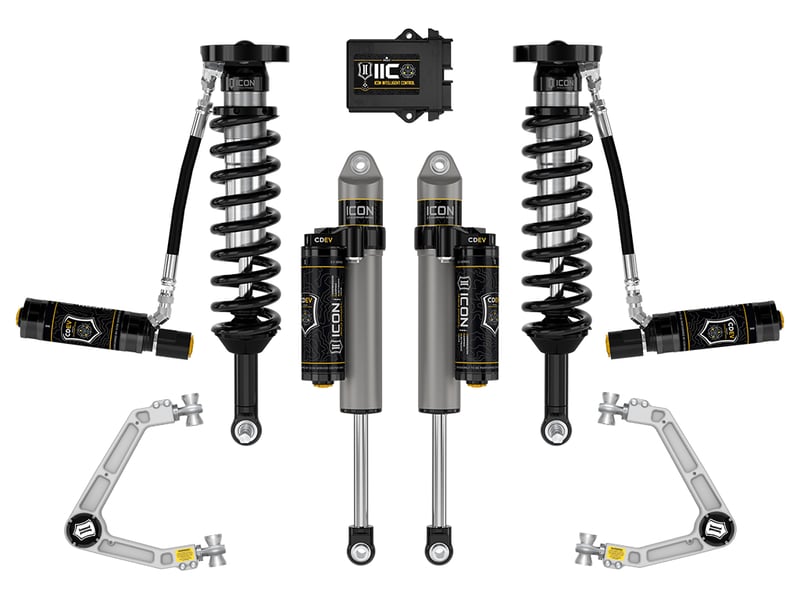

icon 2023-2024 gmc canyon at4, denali, & elevation/chevrolet colorado trail boss, 1.75-2.5" lift, stage 6 suspension system, billet k73086

OVERVIEW

ICON suspension systems lift your Canyon/Colorado while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you'll have the best suspension solution on the market.

Features and Benefits

• 20% increase in wheel travel over stock and improved ride quality with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable Coilovers from 1.75-2.5" of front lift height over stock
• 2.5 Series extended travel front coilovers with remote reservoirs for improved shock cooling and performance
• Billet Upper Control Arms with Delta Joint PRO ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts on all shock absorbers
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Tech Info

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.46" Backspace / 18mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
• APPLICATION NOTE #156: Springs are rated for gasoline engines
• APPLICATION NOTE #158: Only fits "Ultra-Wide Stance" vehicles
• APPLICATION NOTE #159: Will not fit Chevrolet Colorado WT, LT, Z71, or ZR2. Will not fit GMC Canyon AT4X.
• TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
• TECH NOTE: Rear shocks are compatible with 0-1" of rear lift over stock
• TECH NOTE: Only compatible with OE steering knuckles. DO NOT install in combination with ANY aftermarket steering knuckles.

System Components

• 71670E (QTY: 1) | 23-24 GM CANYON/COLORADO 2.5 VS RR CDEV COILOVER KIT
• 78760DJ (QTY: 1) | 23-24 GM CANYON/COLORADO BILLET UCA DJ PRO KIT
• 77751EP (QTY: 1) | 23-24 GM CANYON/COLORADO 0-1" REAR 2.5 VS PB CDEV PAIR
• 73000 (QTY: 1) | 23-24 GM CANYON/COLORADO IIC INSTALL KIT
