icon 2023-2024 toyota sequoia, 3-4.25" lift, stage 2 3.0 suspension system, tubular, trd k53252ts

OVERVIEW

Stage 2 includes 3.0 Series CDCV coilovers for 3-4.25" of front lift, greater performance, and 35" tire fitment. UCAs, rear links and track bar provide alignment correction and rear coils with 3.0 Series CDCV rear shocks balance the tuning.

Features and Benefits

• Vehicle specific design for 2023-2024 Toyota Sequoia
• 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 3-4.25" of front lift over stock
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package
• On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
• 3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #141: Tundra/Sequoia equipped with automatic leveling headlights or Load-Leveling Rear Height Control Air Suspension, part # 55153 is also required
• APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
• TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.25" over stock and 4" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.25" over stock and 2" of lift over stock in the rear. If shorter rear ride heights are desired, consider kit part number K53252T.

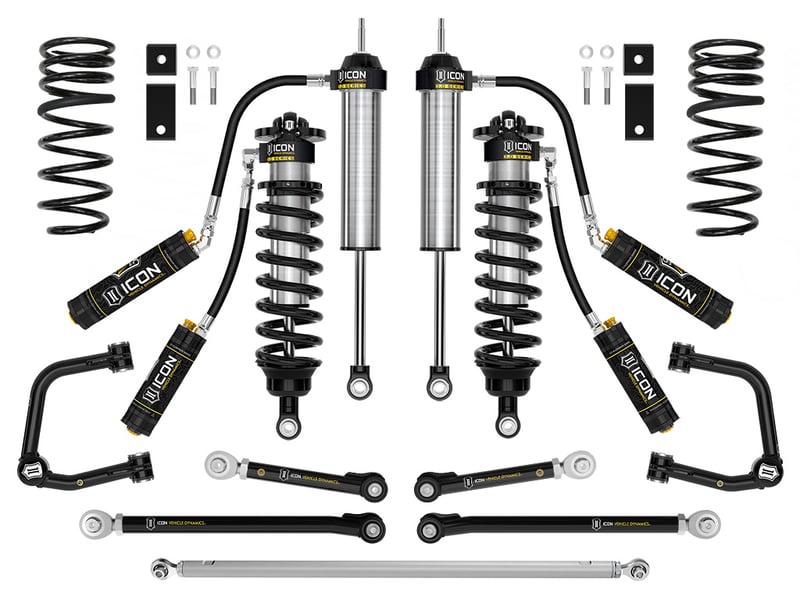

System Components

• 58775C (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• 58461DJ (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA TUBULAR UCA DJ PRO KIT
• 55154 (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA SWAY BAR DROP KIT
• 54002T (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
• 54102T (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
• 51216 (QTY: 1) | 23-24 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
• 54202 (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 57845CP (QTY: 1) | 22-25 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 3.0 VS RR CDCV PAIR
