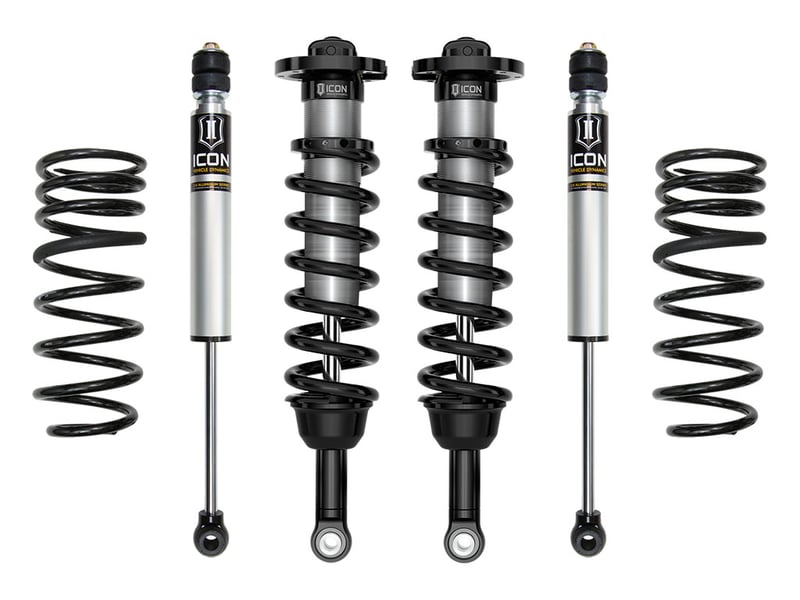

icon 2023-2024 toyota sequoia trd pro, 1-2.5" lift, stage 1 2.5 suspension system k53391

OVERVIEW

The ICON Stage 1 suspension system for the Sequoia TRD Pro is a full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.

Features and Benefits

• Vehicle specific design for 2023-2024 Toyota Sequoia TRD Pro
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 1-2.5" of front lift over stock
• Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
• Allows for increased wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required. If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
• APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms

System Components

• 58673 (QTY: 1) | 23-24 SEQUOIA TRD PRO 2.5 VS IR COILOVER KIT
• 56516 (QTY: 2) | 22-25 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 2.0 VS IR
• 51216 (QTY: 1) | 23-24 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
