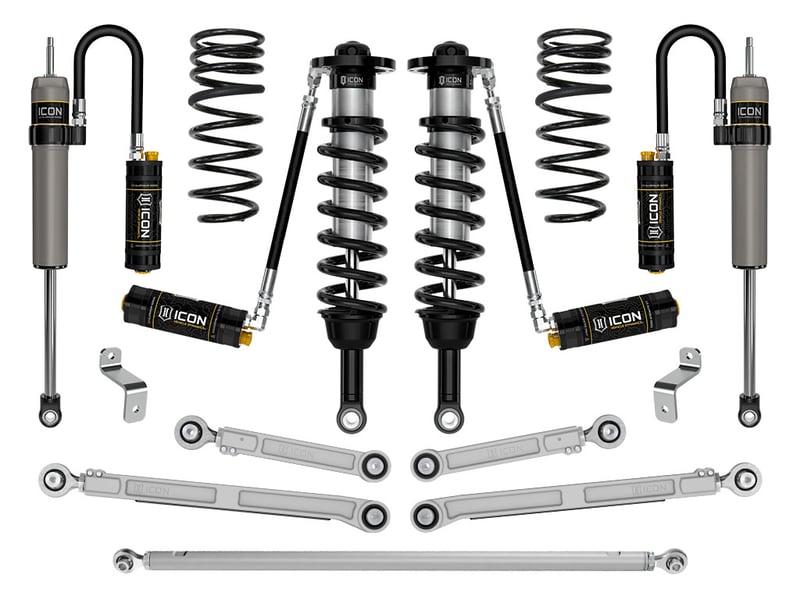

icon 2023-2024 toyota sequoia trd pro, 1-2.5" lift, stage 7 2.5 suspension system, billet k53397

OVERVIEW

The ICON Stage 7 suspension system for the Sequoia TRD Pro is a full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.

Features and Benefits

• Vehicle specific design for 2023-2024 Toyota Sequoia TRD Pro
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 1-2.5" of front lift over stock
• Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
• Allows for increased wheel travel without overstressing OE components
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #189: For Sequoia TRD Pro ICON diff drop (part# 55156) is recommended but not required. If installing ICON diff drop, ICON skid plate spacer kit (part# 55164) is also required.
• APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms

System Components

• 58772C (QTY: 1) | 23-24 SEQUOIA TRD PRO 2.5 VS RR CDCV COILOVER KIT
• 51216 (QTY: 1) | 23-24 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
• 54002 (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT
• 54102 (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• 54202 (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 55153 (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT
• 57840CP (QTY: 1) | 22-25 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 2.5 VS CDCV RR PAIR
