icon 2023-2025 toyota sequoia, 0-2.13" lift, stage 1 suspension system k53231

OVERVIEW

The ICON Stage 1 suspension system for the Sequoia represents our entry level performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.

Features and Benefits

• Vehicle specific design for 2023-2025 Toyota Sequoia
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 0-2.13" of front lift over stock with the use of snap ring
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
• APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
• APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
• APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
• TECH NOTE: Most Sequoia submodels will have front lift height range of 0-2.13" over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package net zero lift and remain at stock height front and rear, but with improved ride quality and suspension performance.

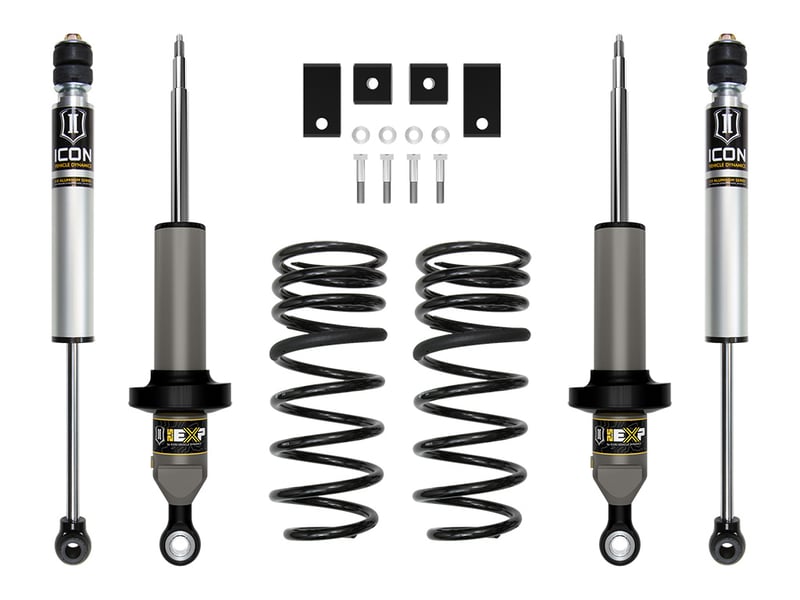

System Components

• 58671 (QTY: 2) | 22-25 TUNDRA/23-24 SEQUOIA FRONT 2.5 EXP COILOVER
• 55154 (QTY: 1) | 22-25 TUNDRA/23-24 SEQUOIA SWAY BAR DROP KIT
• 51212 (QTY: 1) | 23-24 SEQUOIA 2" DUAL RATE REAR SPRING KIT
• 56516 (QTY: 2) | 22-25 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 2.0 VS IR
