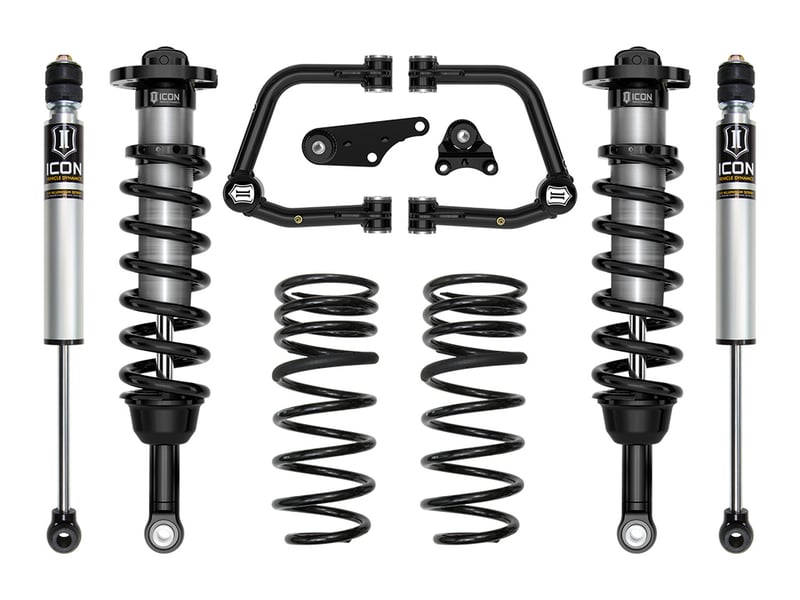

icon 2024-2025 toyota tacoma 1.25-3" lift, stage 2 suspension system, tubular, overland rear springs k53292tx

OVERVIEW

ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

Features and Benefits

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Tech Info

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required
• APPLICATION NOTE #150: Shocks are fully serviceable
• APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
• APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
• APPLICATION NOTE #191: Advertised lift height ranges are for a vehicle with approx 600lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

System Components

• 58680 (QTY: 1) | 24 TACOMA 2.5 VS IR COILOVER KIT
• 58452DJ (QTY: 1) | 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
• 55160 (QTY: 1) | 24 TACOMA/24 LC250 DIFF DROP KIT
• 56518 (QTY: 2) | 24 TACOMA 0-1" REAR 2.0 VS IR
• 51215 (QTY: 1) | 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT
