icon 2024 toyota land cruiser 250 series, 1.25-3" lift, stage 1 suspension system k53361
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Vehicle specific tuned front and rear shocks for superior shock damping and control
Select a vehicle to confirm fitment
Confirm Vehicle Fitment
$2,372.76/ ea
8 Available
Sold in sets of 2
Estimated Delivery: 2 to 7 Days
Fitment Guarantee
Warranty
Product Overview
OVERVIEW
ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
Features and Benefits
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3" front lift height over stock
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
Tech Info
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 6.32" Backspace / 40mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6" Backspace / 40mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift

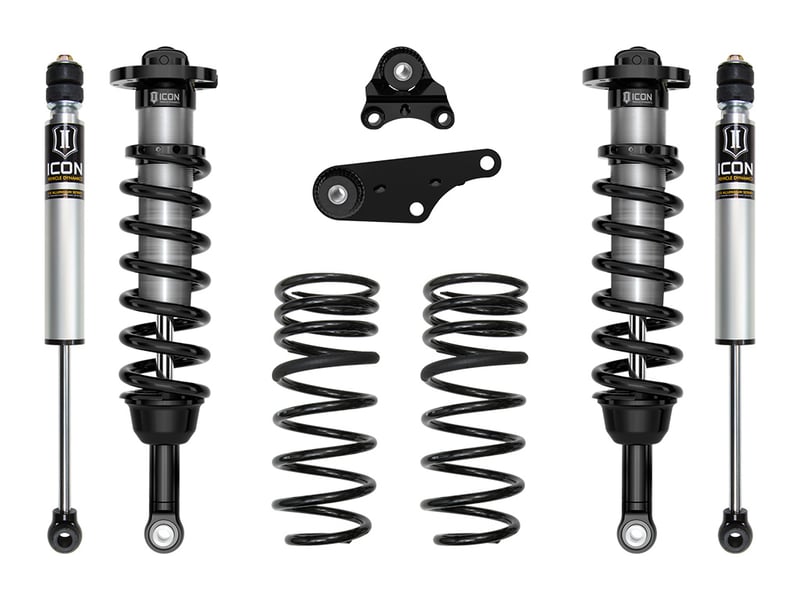

System Components
- 58691 (QTY: 1) | 24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT
- 55160 (QTY: 1) | 24 TACOMA/24 LC250 DIFF DROP KIT
- 56520 (QTY: 2) | 24 LC250/24 GX550 0-3" REAR 2.0 VS IR
- 52752 (QTY: 1) | 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
Technical Specifications
| Brand | ICON Suspension |
|---|---|
| MPN | K53361 |
