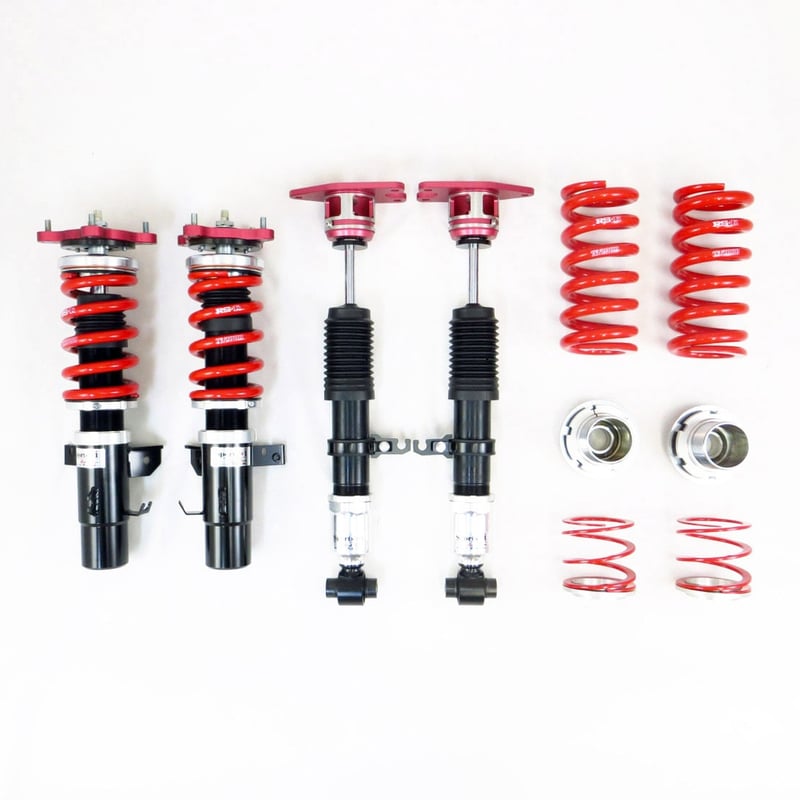

rs-r 20-22 toyota supra (a90) sports-i coilovers xnspt216m
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Fine tuned for competition, our RS-R Club Racer Series offers unquestionable performance with its track dedicated setup.
Confirm Vehicle Fitment
Product Overview
Part#: XNSPT216M
Compatibility: 2020+ Toyota Supra
Chassis code:DB42/DB22
Preset Approximate Height From RS-R:
Front -30mm to -35mm (-1.2in to -1.4in)
Rear -35mm to -40mm (-1.4in to -1.6in)
Maximum Adjustment Ranges
Front -5mm to -55mm (-0.2in to -2.2in)
Rear -15mm to -65mm (-0.6in to -2.6in)
Recommended Adjustments for Optimal Ride-ability
Front -10mm to -50mm (-0.4in to -2.0in)
Rear -15mm to -65mm (-0.6in to -2.6in)
Spring Rates:
Front 14.0kg/mm
Rear 18.0kg/mm
24 levels damper force adjustment in the front and 36 in the rear. Damper Warning Canceler doesn’t come with the kit. If the canceler is not installed, error message is displayed and traction control off system is not functioned.
Technical Specifications
| Brand | RS-R Suspension |
|---|---|
| MPN | XNSPT216M |
