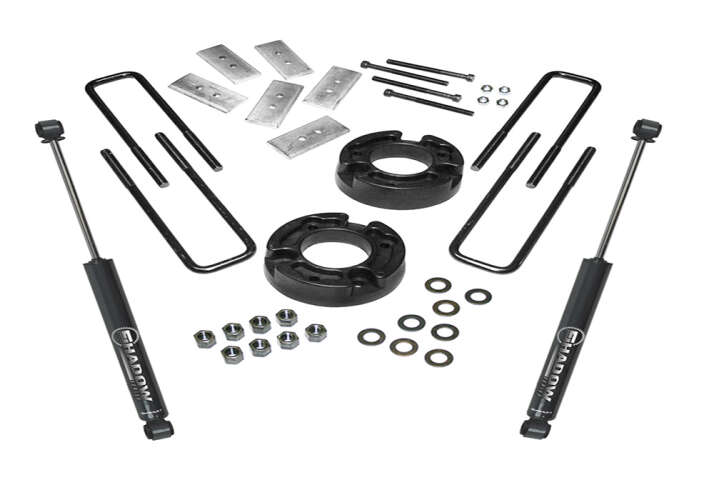

superlift 04-08 ford f-150 4wd 2in lift kit w/ rear superlift shocks k1004

This is the SUPERLIFT Level 1 2.5 inch lift kit with Superlift shocks for the 2004-2008 Ford F-140 4WD. SUPERLIFT's Level 1 kits are moderate lift kits for the truck owners who want to retain the vehicle rake.  Level 1 lift kits are specifically packaged for truck owners who are going to be loading the rear of the vehicle frequently & want the vehicle to be closer to ‘level’ after loading it.

SUPERLIFT's Level 1 lift kit provides a moderate lift kit for the front suspension, a rear block & U-bolt kit plus two (2) Superlift shock absorbers for the rear. Priced much less than traditional taller lifts,  this is the simple solution for those wanting an economical & easy way to make room for taller tires for ground clearance or a plus-size the tire & wheel package on the vehicle.

The 2004-2008 Ford F-140 4WD are all equipped with an Independent Front Suspension (IFS) with coilover strut assembly. The rear suspension configuration is a solid axle with leaf springs.

In these IFS with strut models, the front tires attach to steering knuckles. The knuckles pivot on ball joints attach to upper & lower control arms. The upper & lower control arms position the knuckles front-to-back & side-to-side. A compact coilover strut assembly controls the suspension dampening: the shock and coil spring are together in one compact unit. The steering is a more precise rack-and-pinion steering system. A securely mounted differential transfers power to the front wheel with CV axle-shafts.

This SUPERLIFT Level 1 lift kit is designed for the 2004-2008 Ford F-140 4WD owners wanting a taller than factory stance, extra room for taller tires. This Level 1 Kit includes strut extension mounts on top of the factory strut assembly. The front strut spacer is made of a strong & durable PPA plastic material that is heat resistance, chemical resistance & pretty much corrosion resistance.

This method does not preload the factory coil spring (which would degrade ride quality) or over-extend the factory shock.  No modifications to factory-installed parts are required and no time-consuming disassembly of the factory strut is needed.  The strut extension is easily removable should the vehicle need to be returned to stock

Includes rear block plates & U-bolt kit, new tie bolts & nuts plus two (2) Superlift shock absorbers with specific compression and extension lengths specific for this application.

Features:

• Easy installation and removal – no strut disassembly required.
• Does Not require a strut compressor or disassembly of the strut.
• 100% super-simple bolt-on installation. Installs with basic hand tools.
• Maintains factory ride quality
• Strut spacer is corrosion resistant
• Ideal for restoring height lost from a heavy front bumper, winch/bumper combo or snow-plow.
• Included in this system is a set of two (2) Superlift hydraulic shocks absorbers. Superlift shock absorbers are designed to provide excellent ride quality, durability, and longevity. They feature 10-stage, velocity-sensitive valving for maximum control on or off-road without sacrificing a comfortable ride. Shock resistance is continually adjusted, depending on the terrain and vehicle speed.
• Front: Upper strut mount extension (2); Supplied hardware for strut spacer;
• Rear: Rear block kit; steel block plates (2); U-bolts (4); heavy-duty flat washers (8); U-bolt long nuts (8); tie bolts & nuts (4); Superlift Shocks (2).

NOTE: Does NOT fit 2004 Ford F-150 Heritage models.

Tire and Wheel Info:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation and Notes:

• Installation time: 3 hours
• Difficulty level: 2 of 5

NOTE: Does NOT fit 2004 Ford F-150 Heritage models.
