superlift 17-19 ford f-250 sd 4wd (diesel) 6in radius arm lift kit king fr coils/rr reservoir shocks k169kg
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.

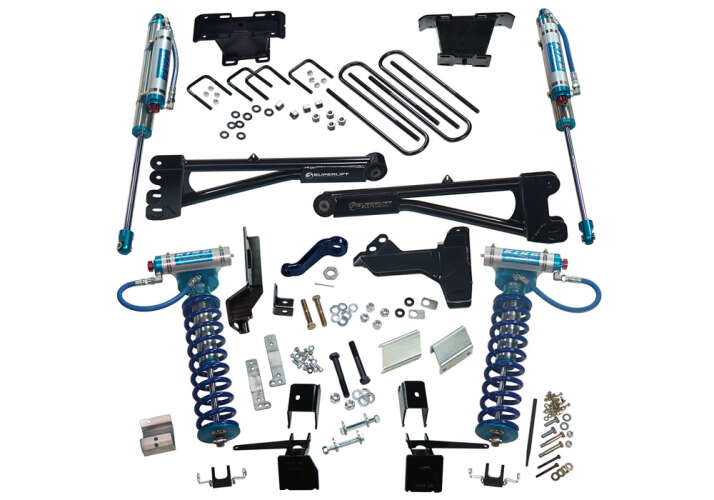

Superlift 17-19 Ford F-250 SD 4WD (Diesel) 6in Radius Arm Lift Kit King Fr Coils/RR Reservoir Shocks K169KG
- 2017-2022 Ford F-250 Super Duty DIESEL 6 in. Suspension Lift Kit With Replacement Radius Arms With KING Coilovers and KING Rear Shocks 4WD
- 2017-2022 Ford F-250 Super Duty FLEX 6 in. Suspension Lift Kit With Replacement Radius Arms With KING Coilovers and KING Rear Shocks 4WD
- 2020-2022 Ford F-250 Super Duty GAS 6 in. Suspension Lift Kit With Replacement Radius Arms With KING Coilovers and KING Rear Shocks 4WD
- 2017-2022 Ford F-350 Super Duty DIESEL 6 in. Suspension Lift Kit With Replacement Radius Arms With KING Coilovers and KING Rear Shocks 4WD
- 2017-2022 Ford F-350 Super Duty FLEX 6 in. Suspension Lift Kit With Replacement Radius Arms With KING Coilovers and KING Rear Shocks 4WD
- 2020-2022 Ford F-350 Super Duty GAS 6 in. Suspension Lift Kit With Replacement Radius Arms With KING Coilovers and KING Rear Shocks 4WD
- This is a complete King Shocks coilover replacement radius arm suspension Lift Kit for the 2017-2021 Ford F-250/F-350 4WD – diesel engine
- Provides 6" of lift height
- Includes track bar bracket and related brackets, rear blocks and rear King Shocks remote Reservoir shocks.
- This kit also comes in a Superlift shock option
- Front KING coilover shocks, replacement radius arms, pitman arm, sway bar brackets, track bar bracket, brake line brackets, steering stabilizer bracket, and all hardware needed for installation.
- Rear fabricated blocks with ubolts and KING reservoir shocks.
- Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.
Confirm Vehicle Fitment
Product Overview
KING® Shocks and SUPERLIFT® united forces to provide you with a precision engineered lift system with perfectly matched and specifically valved shocks. Using race-winning technology, King Shocks front coil overs and rear shocks both have external reservoirs and are both easily adjustable with the simple twist of a knob. Select from Super Soft to Super Firm to create a ride perfectly suited to you. Soften up when just cruising the streets or firm it up when hammering the rough terrain or carrying an extra payload. Discover for yourself the reason the world’s toughest race winners choose King Shocks.
These King Superlift edition Coil Overs come completely assembled and ready to bolt in. No assembly or spring compressors needed.
For Superlift's part, OEM CAD models and the latest 3D design software were used to precision engineer a suspension system that hinges around a set of massive, high clearance tubular radius arms designed to bolt right into the factory mounts. These heavy-duty radius arms use the giant press fit OEM Clevite bushings to reduce noise, vibration and harshness (NVH) feature a flat jack plate, include alignment cam bolts and are offset to the inside allowing maximum turning radius and tire clearance.
The 6" lift also contains a new track bar relocation bracket and dropped pitman arm to ensure proper steering geometry and track bar phasing. The rear lift is achieved with a new design fabricated rear block that allows the removal of the stock block.
Avoid the long wait times and high costs associated with one-off builds. Make the ultimate upgrade to your Super Duty with the King Superlift edition Coilover Conversion Systems from Superlift.
NOTE: If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11734
Tire and Wheel Info:
| Tire | Wheel | Backspacing | Offset |
| 37 x 12.5 | 17 x 9 | 4.5 | - |
| 37 x 12.5 | 18 x 9 | 4.5 | - |
| 37 x 12.5 | 20 x 9 | 4.5 | - |
| 37 x 12.5 | 20 x 10 | - | -12 to -24 |
| 38 x 13.5 | 17 x 9 | 4.5 | - |
| 38 x 13.5 | 18 x 9 | 4.5 | - |
| 38 x 13.5 | 20 x 9 | 4.5 | - |
| 38 x 13.5 | 20 x 10 | - | -12 to -24 |
| 40 x 13.5 | 20 x 9 | 4.5 | - |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
Installation and Notes:
- Installation time: 8 hours
- Difficulty level: 3 of 5
NOTE: If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11734
DOES IT WORK ON A DUALLY?
The kit works for the front on a dually. The primary issue with dually trucks is the rear u-bolts. We have to confirm axle tube diameter and length required and see if we have a u-bolt available, or if they will have to be made at a shop near you.
Warranty Info:
Superlift Suspension supplied components carry a limited lifetime warranty on fabricated items and a 1-year warranty on all wearable items such as bushings, stabilizers, and shocks.
Warranty coverage on shocks such as KING Shocks Technology, or Fox Shocks will need to go through their specific manufacturer's website for warranty and return procedures
Technical Specifications
| Brand | Superlift Suspension |
|---|---|
| MPN | K169KG |
