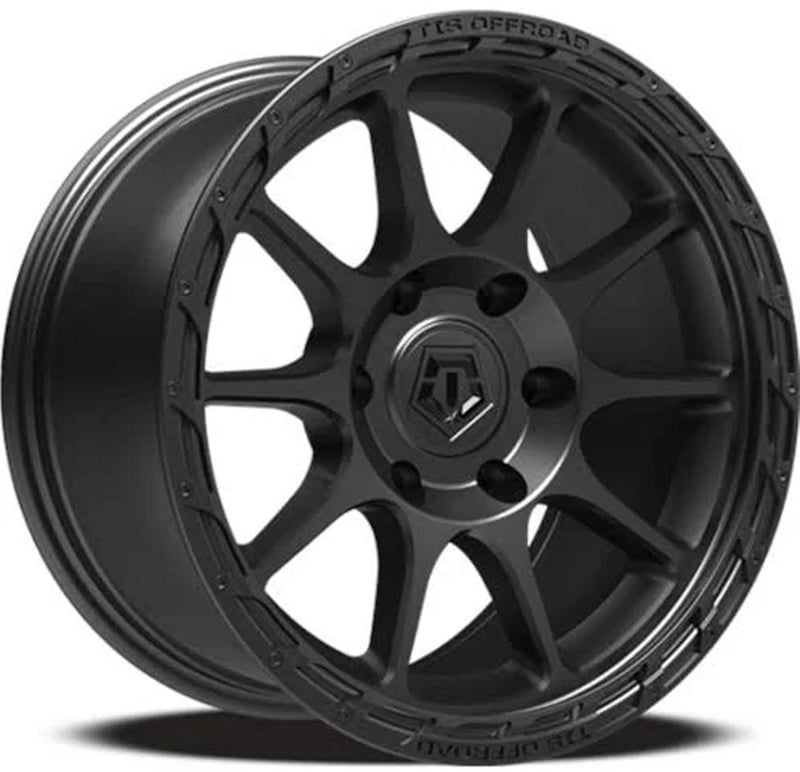

TIS Off-Road 563B Satin Black
Product gallery
All pictures shown are for illustration purpose only. Lip size, concavity, and features on wheels will vary depending on wheel specs.
Other Available Finishes
Free Shipping US 48Most Wheels Over $500
Fitment Guarantee20+ Year Experience
Mounting & BalanceHigh Speed Touchless
Free Install KitWheel & Tire Packages
Select a vehicle to confirm fitment
Confirm Vehicle Fitment
Engineered for Excellence
Technical Specifications
| Finish | Satin Black |
|---|---|
| Design | 10 Spoke |
| Profile | Concave Design |
| Available Sizes | 17x9, 18x9, 20x9, 20x10, 22x10, 22x12 |
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov (opens in a new tab)
Complete Fitment Catalog
Compare specs and view individual wheel listings for the TIS Off-Road 563B Satin Black
| Size | Bolt Pattern | Offset | Center Bore | Load Rating | Part Number | Price | |
|---|---|---|---|---|---|---|---|
17x9 | 5x127/5 | -12mm | 78.00mm | 2,500 lbs | 563B-7907312 | $378.00 | View Wheel |
17x9 | 6x139.7/5.5 | -12mm | 106.10mm | 2,500 lbs | 563B-7908312 | $378.00 | View Wheel |
17x9 | 6x139.7/5.5 | 0mm | 106.10mm | 2,500 lbs | 563B-7908300 | $378.00 | View Wheel |
17x9 | 6x135 | -12mm | 87.00mm | 2,500 lbs | 563B-7906312 | $378.00 | View Wheel |
18x9 | 6x135 | 0mm | 87.00mm | 2,500 lbs | 563B-8906300 | $398.00 | View Wheel |
18x9 | 6x139.7/5.5 | 0mm | 106.10mm | 2,500 lbs | 563B-8908300 | $398.00 | View Wheel |
18x9 | 5x127/5 | 0mm | 78.00mm | 2,500 lbs | 563B-8907300 | $398.00 | View Wheel |
18x9 | 6x139.7/5.5 | +18mm | 106.10mm | 2,500 lbs | 563B-8908318 | $398.00 | View Wheel |
20x9 | 6x139.7/5.5 | +18mm | 106.10mm | 2,500 lbs | 563B-2098318 | $438.00 | View Wheel |
20x9 | 6x139.7/5.5 | 0mm | 106.10mm | 2,500 lbs | 563B-2098300 | $438.00 | View Wheel |
20x9 | 8x165/6.5 | 0mm | 125.10mm | 3,640 lbs | 563B-2098100 | $438.00 | View Wheel |
20x9 | 8x180 | 0mm | 124.30mm | 3,640 lbs | 563B-2098900 | $438.00 | View Wheel |
20x9 | 6x135 | +18mm | 87.00mm | 2,500 lbs | 563B-2096318 | $438.00 | View Wheel |
20x9 | 5x127/5 | 0mm | 78.00mm | 2,500 lbs | 563B-2097300 | $438.00 | View Wheel |
20x9 | 6x135 | 0mm | 87.00mm | 2,500 lbs | 563B-2096300 | $438.00 | View Wheel |
20x9 | 8x170 | 0mm | 125.12mm | 3,640 lbs | 563B-2098700 | $438.00 | View Wheel |
20x10 | 8x165/6.5 | 0mm | 125.20mm | 3,640 lbs | 563B-2108100 | $458.00 | View Wheel |
20x10 | 8x180 | -24mm | 124.30mm | 3,640 lbs | 563B-2108924 | $458.00 | View Wheel |
20x10 | 6x139.7/5.5 | 0mm | 106.10mm | 2,500 lbs | 563B-2108300 | $458.00 | View Wheel |
20x10 | 8x170 | -24mm | 125.20mm | 3,640 lbs | 563B-2108724 | $458.00 | View Wheel |
20x10 | 6x139.7/5.5 | -24mm | 106.10mm | 2,500 lbs | 563B-2108324 | $458.00 | View Wheel |
22x10 | 8x170 | -19mm | 125.20mm | 3,640 lbs | 563B-2208719 | $375.00 | View Wheel |
22x12 | 8x180 | -44mm | 124.30mm | 3,640 lbs | 563B-2228944 | $432.00 | View Wheel |
22x12 | 6x135 | -44mm | 87.00mm | 2,600 lbs | 563B-2226344 | $432.00 | View Wheel |
