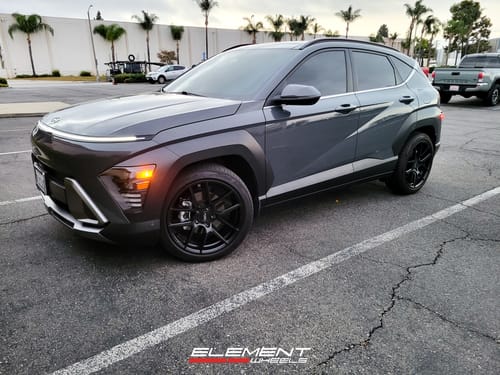

Hyundai Kona Wheels and Rims

Hyundai Kona Aftermarket Wheel Fitment

The Hyundai Kona is a subcompact crossover that joined the Hyundai US lineup in 2018 and has run two generations. The 1st gen OS (2018-2023) launched the platform. The current 2nd gen SX2 (2024 and up) brought a more upright body, a larger interior, and a refreshed Kona Electric powertrain. The bolt pattern has stayed constant since the Kona launched at 5x114.3 with a 67.1mm hub bore and M12x1.5 lug thread, the same hub spec Hyundai uses across most of its modern lineup. Element Wheels measures fitment on both Kona generations, including the Kona N performance variant (2023) and the Kona Electric. The Kona is a front-wheel-drive or all-wheel-drive crossover across every generation with square fitment from the factory. Pick your generation below for the fitment specs that apply to your specific Kona.

Find Your Hyundai Kona Generation

Pick your generation to see wheels and rims that fit your specific Kona. The bolt pattern is 5x114.3 with a 67.1mm hub bore on every Kona from launch through the current SX2. The aftermarket fitment window steps up on the 2nd gen SX2 (2024 and up) where the diameter range expands. The Kona Electric uses the same wheel hub spec as the gasoline Kona.

The Hyundai Kona Bolt Pattern

Every Hyundai Kona built since the platform launched uses 5x114.3 with a 67.1mm hub bore and M12x1.5 lug nuts. That covers the 1st gen OS (2018-2023), the Kona N (2023), and the current 2nd gen SX2 (2024 and up). The 5x114.3 pattern is also written as 5x4.5 in imperial. 5x4.5 refers ONLY to 5x114.3 (114.3mm equals 4.5 inches). It does NOT refer to 5x115, which is a different bolt pattern used on Chrysler 300, Dodge Charger LX, and similar American sedans. The two patterns sit about 0.7mm apart and are not interchangeable. A 5x115 wheel will not bolt onto a Kona.

The 67.1mm hub bore is the Hyundai-Kia midsize and crossover standard, the same bore used on the Tucson, Santa Fe, Elantra (from 2007 onward), Sonata (from 2006 onward), and the modern Kia compact and crossover lineup. It is not the same as the Toyota family 60.1mm bore or the Honda 64.1mm bore. 5x114.3 wheels listed specifically for a Toyota or Honda will physically bolt to a Kona because the bolt math matches, but the smaller centerbore on those wheels will not hub-center on the Kona without a hub centric ring. Kona-specific wheel listings on our site use the 67.1mm centerbore by default. Compare across the rest of the Hyundai lineup at our Hyundai wheels and rims hub.

Kona Trims, the Kona N, and the Kona Electric

The Kona lineup covers SE, SEL, N Line, Limited, and the Kona Electric across both generations, plus the Kona N as the performance variant on the 1st gen OS. Every Kona trim uses the same 5x114.3 bolt pattern, 67.1mm hub bore, and M12x1.5 thread. In our catalog the Kona N (2023) sits in its own row because it is the dedicated performance variant, but the wheel hub spec is identical to the rest of the Kona range and the aftermarket fitment window broadly matches the 1st gen OS. The Kona Electric (1st gen OS and 2nd gen SX2) shares the same bolt pattern, hub bore, and lug thread as the gasoline Kona. The Electric powertrain does not change wheel fitment. A wheel that fits a gasoline OS Kona fits an OS Kona Electric. A wheel that fits a 2nd gen SX2 gasoline Kona fits a 2nd gen Kona Electric.

Square (non-staggered) fitment is the factory and recommended configuration on every Kona, including the Kona N and the Kona Electric. The Kona is a front-wheel-drive or all-wheel-drive crossover throughout its history, and the chassis is engineered around a square wheel and tire setup. Our aftermarket window respects that on every generation.

Every wheel we recommend is backed by our Fitment Guarantee. If a wheel does not fit, we pick up the wheels and refund 100 percent. No risk to you.

How We Confirm Fitment on Hyundai Kona Wheels

Element Wheels measures fitment on the platforms we sell wheels for, including both Kona generations and the Kona Electric. For the Kona that means clearance from the wheel to the fender, gap between the back of the wheel and the front suspension, brake caliper height across the trim lineup including the Kona N, hub bore confirmation on the 67.1mm hub, lug seat geometry on the M12x1.5 thread, and turning clearance at full lock. At our fitment facility in Chandler, Arizona, the Element Wheels team measures directly on the physical platforms we support. We don't pull specs from manufacturer sheets the way most retailers do.

Hyundai Kona Wheels and Rims FAQ

Get Hyundai Kona Wheels Right the First Time

Pick your generation above to see wheels and rims that fit. We measure on the Kona platform across both generations, track the Kona N performance variant, and confirm the Electric powertrain uses the same wheel hub spec as the gasoline Kona. Find your fit and start enjoying your build sooner.
