Hyundai Elantra Wheels and Rims

Hyundai Elantra Aftermarket Wheel Fitment

The Hyundai Elantra is Hyundai's compact sedan and one of the longest-running nameplates in the modern Hyundai lineup. The Elantra has run two bolt pattern eras over its US lifespan. The 1992-2006 cars used a 4-lug 4x114.3 pattern with a 67.1mm hub bore. The 2007 and up Elantra moved to a 5-lug 5x114.3 pattern, keeping the same 67.1mm hub bore and M12x1.5 lug thread Hyundai uses across most of its modern lineup. The current 7th gen Elantra (CN7, 2021 and up) uses the same 5-lug spec, as does the performance-oriented Elantra N (2022 and up). The Elantra N is the carve-out in the lineup: it ships with a slightly oversized front brake that requires more inner-barrel clearance than the rest of the Elantra range, so we measure it as a separate fitment row. Pick your generation below for the fitment specs that apply to your specific Elantra.

Find Your Hyundai Elantra Generation

Pick your generation to see wheels and rims that fit your specific Elantra. The bolt pattern transition between 2006 and 2007 (4-lug to 5-lug) is the most important confirm. 1992-2006: 4x114.3 / 67.1mm hub bore / 4 lug. 2007 and up: 5x114.3 / 67.1mm hub bore / 5 lug. The two pattern eras do not interchange. The Elantra N (2022 and up) is also a separate fitment row because of its larger front brake.

The Hyundai Elantra Bolt Pattern

The Elantra has one bolt pattern transition in its US lifespan: the 4-lug to 5-lug move that happened with the 2007 model year. 1992-2006 Elantras use 4x114.3 with a 67.1mm hub bore, M12x1.5 thread, and 4 lugs. 2007 and up Elantras use 5x114.3 with the same 67.1mm hub bore and M12x1.5 thread, but with 5 lugs. The hub bore and thread pitch stayed constant across the transition, but the lug count and pattern changed, so wheels do not cross the 2006 to 2007 boundary. The 2007 Elantra Sedan was the first 5-lug Elantra in the US. The same 5x114.3 / 67.1mm spec has held across every Elantra generation since, including the current CN7 (2021 and up), the Elantra N Line (2021-2023), and the Elantra N (2022 and up).

On the modern (2007 and up) Elantra, the imperial nickname for 5x114.3 is 5x4.5, since 114.3mm equals exactly 4.5 inches. That pattern is one of the most common 5-lug patterns in the modern automotive market and is shared across the modern Hyundai-Kia compact and mid-size sedan lineup including the Kia Forte and Kia K5, the Honda Civic from 2004 forward, the Nissan Altima, most Toyota Camry generations, and the Mazda6.

One detail that catches buyers: 5x114.3 is NOT the same as 5x115 used on some American sedans. The two patterns sit only 0.7mm apart but they do not bolt across. The lug studs will not line up at that spacing. The 5x4.5 imperial nickname refers specifically to 5x114.3 (114.3mm equals 4.5 inches), not 5x115. The Chrysler 300, Dodge Charger LX, and Dodge Challenger use 5x115, and those wheels will not fit your Elantra. Stick to 5x114.3 / 5x4.5 specifically on a 2007 and up Elantra. Compare across the rest of the Hyundai lineup at our Hyundai wheels and rims hub.

Why the Elantra N Runs Tighter Fitment Than a Base Elantra

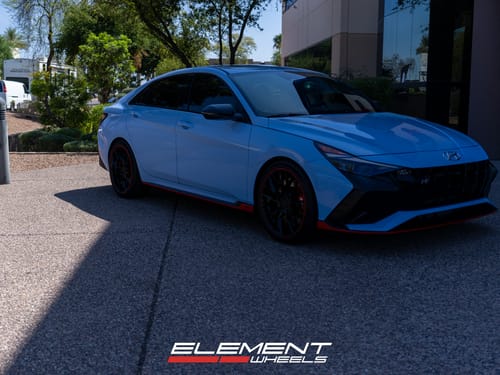

The Elantra N (2022 and up) is the high-performance variant Hyundai launched alongside the 7th gen CN7 Elantra. The N carries the most aggressive Elantra powertrain (a turbocharged 2.0L) and slightly oversized front brakes that are physically larger than the brakes on the rest of the Elantra lineup. The bolt pattern and hub bore stay the same at 5x114.3 / 67.1mm. What changes on the N is the inner-barrel clearance the wheel needs to clear the front caliper. Front-larger-than-rear is the normal configuration on a performance car of the N caliber. The front axle does the majority of the braking work and Hyundai scaled the front caliper accordingly. We measure the Elantra N as a separate fitment row in our catalog because of the brake clearance change. Square (non-staggered) fitment is the factory and recommended configuration on every Elantra, including the N.

The Elantra N Line (2021-2023) is a styling and suspension package that sits between the standard Elantra and the Elantra N. The N Line uses the same brake package as the standard CN7 Elantra in our catalog, so it shares the same aftermarket fitment window as the rest of the 2021 and up Elantra range. The Elantra N is the only variant where the brake package materially changes the aftermarket wheel inner-barrel requirement.

Every wheel we recommend is backed by our Fitment Guarantee. If a wheel does not fit, we pick up the wheels and refund 100 percent. No risk to you.

How We Confirm Fitment on Hyundai Elantra Wheels

Element Wheels measures fitment on the platforms we sell wheels for, including the modern Elantra and the Elantra N. For the Elantra that means clearance from the wheel to the fender, gap between the back of the wheel and the front suspension, brake caliper height across the trim lineup including the slightly oversized front caliper on the Elantra N, hub bore confirmation on the 67.1mm hub, lug seat geometry across the 4-lug and 5-lug eras, and turning clearance at full lock. At our fitment facility in Chandler, Arizona, the Element Wheels team measures directly on the physical platforms we support. We don't pull specs from manufacturer sheets the way most retailers do.

Hyundai Elantra Wheels and Rims FAQ

Get Hyundai Elantra Wheels Right the First Time

Pick your generation above to see wheels and rims that fit. We measure on the Elantra platform across every generation, separate the 4-lug and 5-lug eras, and flag the Elantra N as its own fitment row because of the larger front brake. Find your fit and start enjoying your build sooner.
